WP1513SURC

LED Indication - Discrete Overview

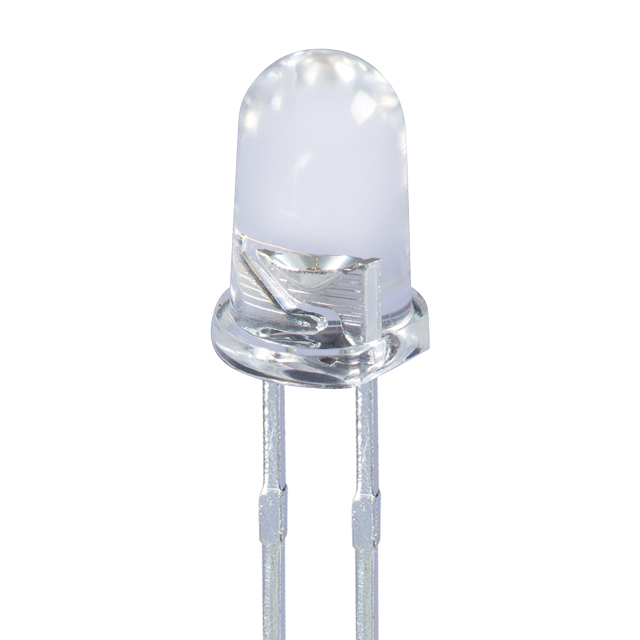

The Kingbright WP1513SURC is a single-color red light-emitting diode designed for through-hole mounting. It features a T-1 3/4 (5 mm) lens with a water-clear dome shape and a 20-degree viewing angle. The component operates at a forward voltage of 1.9 V and emits light at a peak wavelength of 630 nm. It delivers a luminous intensity of 2200 mcd at a test current of 20 mA, with a maximum power dissipation rating of 75 mW.

LED Indication - Discrete Feature Summary

• High-intensity red emission suitable for visible status indication
• Water-clear lens provides wide beam visibility
• Low forward voltage operation for energy efficiency

LED Indication - Discrete Applications

• Panel indicator lights
• Power supply status displays
• Control board signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm optical characteristics. Ensure the procurement channel sources genuine components to maintain specified luminous intensity and electrical ratings. Cross-reference datasheet parameters with supplier specifications before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when high brightness in a compact radial package is required. The low forward voltage aids in driving from standard logic levels. Consider the narrow viewing angle for focused illumination needs rather than broad area lighting applications.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP1513 series of T-1 3/4 LEDs. The series offers various color options and lens treatments. The WP1513SURC specifically targets applications requiring intense red visibility within standard 5 mm through-hole form factors.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other T-1 3/4 red LEDs with similar 20-degree angles and comparable luminous intensity. Verify forward voltage compatibility to ensure circuit performance remains stable during replacement.
