WP483GDT

LED Indication - Discrete Overview

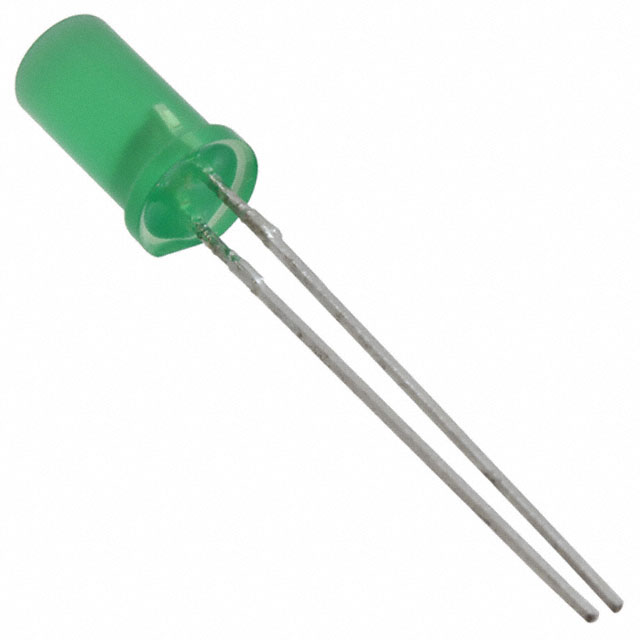

The WP483GDT is a single-color green light-emitting diode manufactured by Kingbright, designed for through-hole mounting. It features a T-1 3/4 cylindrical package with a diameter of 5 mm and a diffused lens to provide wide viewing angles. The component emits light at a peak wavelength of 568 nm. Typical luminous intensity is specified at 4 mcd when driven at a forward current of 10 mA. The device operates with a forward voltage of approximately 2.4 V, making it suitable for low-power indicator applications requiring reliable performance.

LED Indication - Discrete Feature Summary

• Cylindrical T-1 3/4 form factor with diffused lens for uniform light distribution
• Green emission optimized for visual indication tasks
• Through-hole construction ensuring mechanical stability

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from Kingbright to confirm electrical tolerances and thermal characteristics before integration. Ensure that the PCB footprint matches the T-1 3/4 lead spacing requirements. Cross-reference the ordering suffix to confirm the exact lens diffusion and color specifications align with design needs.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm cylindrical green LED is required for through-hole assembly. Consider the 568 nm wavelength for visibility requirements and the 2.4 V forward voltage for circuit compatibility. Evaluate the 4 mcd typical intensity against ambient lighting conditions to ensure adequate visibility without excessive power consumption.

LED Indication - Discrete Part Context

This part belongs to Kingbright's line of standard through-hole LEDs, specifically within the T-1 3/4 cylindrical series. These components are widely used in industrial and consumer electronics for basic visual signaling. The WP483GDT represents a common configuration offering a balance of cost-effectiveness and reliability for general-purpose indicator duties.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright documentation for direct substitutes. Verify pinout compatibility and spectral output differences when considering alternative manufacturers or models within the same package style.
