WP503YDT

LED Indication - Discrete Overview

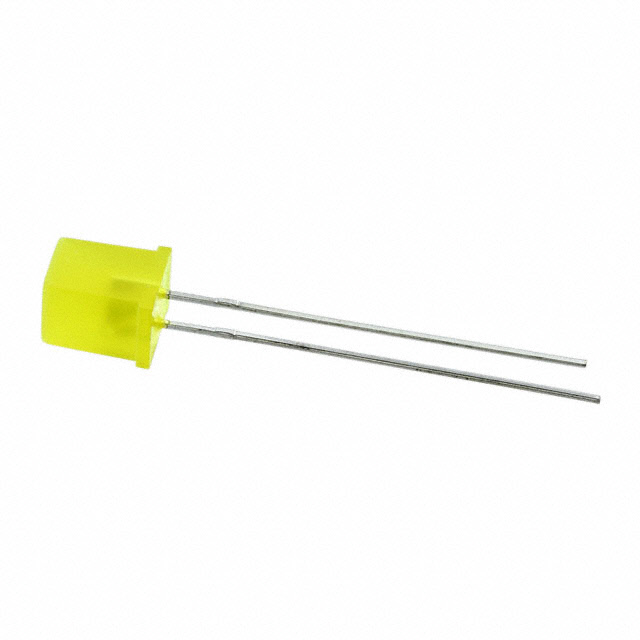

The WP503YDT is a single-color yellow LED indicator from Kingbright, designed for through-hole mounting. It features a square lens with diffused transparency and emits light at a peak wavelength of 588 nm. The component operates with a forward current of 10 mA and has a typical forward voltage of 2.1 V. It provides an optical intensity of 1 mcd with a viewing angle of 140 degrees. The package dimensions are 5 mm x 5 mm, with a maximum height of 8.6 mm. It functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Square diffused lens design for wide-angle visibility
• Yellow emission at 588 nm peak wavelength
• Through-hole radial installation style

LED Indication - Discrete Applications

• Panel indicators
• Status signaling
• Control equipment displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'YDT' against the official Kingbright datasheet to confirm the yellow color, diffused finish, and square package configuration. Ensure the ordering part number matches the required electrical parameters and mechanical dimensions before procurement.

LED Indication - Discrete Selection Notes

Select this component when a high viewing angle is required for panel-mounted applications. The diffused square lens provides uniform light distribution. Verify that the 10 mA forward current rating aligns with the target circuit design constraints.

LED Indication - Discrete Part Context

This part belongs to the WP503 series of single-color LEDs manufactured by Kingbright. The series includes various colors and lens styles, such as red and clear options. The WP503YDT specifically denotes the yellow variant with a diffused square lens.

LED Indication - Discrete Replacement Considerations

WP503HDT (Red, Diffused Square)

LED Indication - Discrete FAQ

What is the viewing angle of the WP503YDT?

The WP503YDT has a viewing angle of 140 degrees.

What is the lens shape of this LED?

The lens shape is square.
