WP59EGW/CA

LED Indication - Discrete Overview

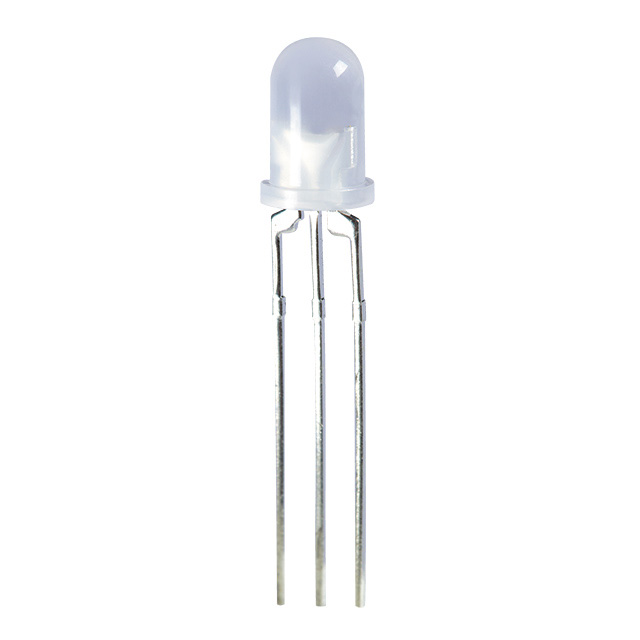

The Kingbright WP59EGW/CA is a T-1 3/4 (5mm) bi-color indicator lamp featuring red and green LEDs. It utilizes a common anode configuration with two distinct light-emitting elements housed in a single package. The device operates at a maximum forward current of 20 mA per element, with a peak wavelength of 625 nm for the red section and 568 nm for the green section. It exhibits a viewing angle of 50 degrees and is designed for through-hole mounting on circuit boards.

LED Indication - Discrete Feature Summary

• Dual-element construction enabling independent red and green illumination within a standard 5mm form factor.
• Common anode electrical architecture simplifies control logic by sharing a positive supply terminal.

LED Indication - Discrete Applications

• Status indication in electronic equipment panels
• Power state signaling in consumer devices
• Bi-color visual alerts in industrial control systems

LED Indication - Discrete Procurement Notes

Verify component authenticity against official Kingbright datasheets to ensure correct pinout and optical specifications. Confirm that the common anode configuration aligns with the target circuit design before integration. Check for RoHS compliance documentation if environmental regulations apply to the end product assembly process.

LED Indication - Discrete Selection Notes

Select this component when a dual-state visual indicator is required in a limited space without needing separate LED packages. The 50-degree viewing angle provides adequate visibility for panel-mounted applications. Ensure the driving circuit can handle the 20 mA forward current requirement for each individual color channel independently.

LED Indication - Discrete Part Context

This part belongs to the Kingbright Multi-Color LED series, specifically designed as a T-1 3/4 bi-color indicator lamp. It serves as a compact solution for applications requiring two distinct visual states from a single footprint, replacing the need for multiple discrete components in space-constrained designs.

LED Indication - Discrete Replacement Considerations

WP59EGW is a similar variant within the same family. Verify specific suffix differences regarding lens clarity or intensity ratings before substitution to ensure optical performance matches the original design requirements.
