WP710A10GD5V

LED Indication - Discrete Overview

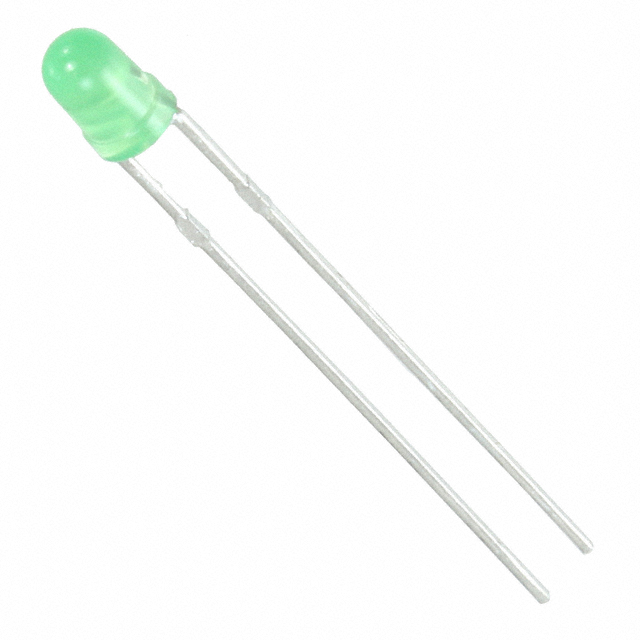

The WP710A10GD5V is a single-color green light-emitting diode manufactured by Kingbright, designed for through-hole mounting in a T-1 (3 mm) package. It emits light at a wavelength of 568 nm with a luminous intensity of 25 mcd and a viewing angle of 40 degrees. The component features a tinted, diffused lens and operates with a forward current of 10.5 mA and a forward voltage of 5 V. It has a power rating of 160 mW and functions within a temperature range of -40°C to +70°C.

LED Indication - Discrete Feature Summary

• Integrates a built-in 5V resistor for simplified circuit design
• Utilizes a diffused lens to provide uniform illumination
• Constructed in a standard T-1 (3 mm) through-hole form factor

LED Indication - Discrete Applications

• Panel status indicators
• Power supply visual feedback
• Control board signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix GD5V to confirm the integrated 5V resistor variant, as other WP710A10 models may lack this feature or use different voltages. Ensure the T-1 package dimensions align with PCB hole spacing requirements. Confirm RoHS compliance status through official datasheets before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component when a direct drive solution without external current-limiting resistors is required for green indication. The 40-degree viewing angle offers moderate visibility suitable for panel-mounted applications. Consider the 5V forward voltage drop when calculating total circuit voltage budgets compared to standard LED variants.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP710A10 series of T-1 (3 mm) LEDs. The series includes various colors and configurations, such as clear lenses and different voltage ratings. The WP710A10GD5V specifically addresses applications needing green indication with simplified biasing circuits due to its internal resistance integration.

LED Indication - Discrete Replacement Considerations

Direct substitutes include the WP710A10GD14V for higher voltage applications requiring a 14V resistor. For lower voltage needs, the WP710A10GD5V is unique; however, generic T-1 green LEDs without integrated resistors may serve as functional replacements if external components are added.
