WP710A10NC

LED Indication - Discrete Overview

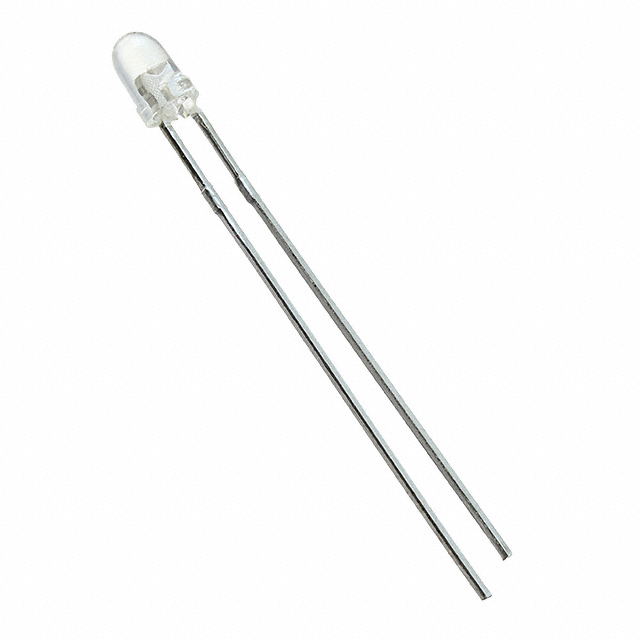

The WP710A10NC is a single-color orange LED manufactured by Kingbright, designed for through-hole mounting in a T-1 (3 mm) package. It emits light at a wavelength of 602 nm with a luminous intensity of 50 mcd and a viewing angle of 50 degrees. The component features a water-clear lens and operates with a forward current of 20 mA and a forward voltage of 2.05 V. It has a power rating of 75 mW and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Utilizes a T-1 (3 mm) dome-shaped lens with water-clear transparency for consistent light transmission
• Constructed with Gallium Arsenide Phosphide on Gallium Phosphide substrate for stable orange emission
• Features general-purpose leads suitable for reliable through-hole PCB integration

LED Indication - Discrete Applications

• Status indicator lights
• Panel illumination
• Signal indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix NC against the manufacturer datasheet to confirm optical parameters such as wavelength and intensity. Ensure the procurement channel provides valid RoHS compliance documentation. Confirm that the bulk packaging format aligns with assembly requirements. Cross-reference the part number with official Kingbright records to avoid substitution errors.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm through-hole orange LED is required for general-purpose indication. Consider the 50-degree viewing angle and 50 mcd intensity for visibility needs. Verify compatibility with existing circuit designs regarding the 2.05 V forward voltage drop. Ensure the operating temperature range meets environmental constraints.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP710 series of standard single-color LEDs. The series offers various color options and lens styles within the T-1 form factor. These components are widely used in electronic equipment for visual signaling. The WP710A10NC specifically provides orange illumination with a clear lens configuration.

LED Indication - Discrete Replacement Considerations

WP710A10SET

LED Indication - Discrete FAQ

What is the lens style of the WP710A10NC?

The WP710A10NC features a water-clear lens.

What is the maximum operating temperature for this LED?

The maximum operating temperature is +85°C.
