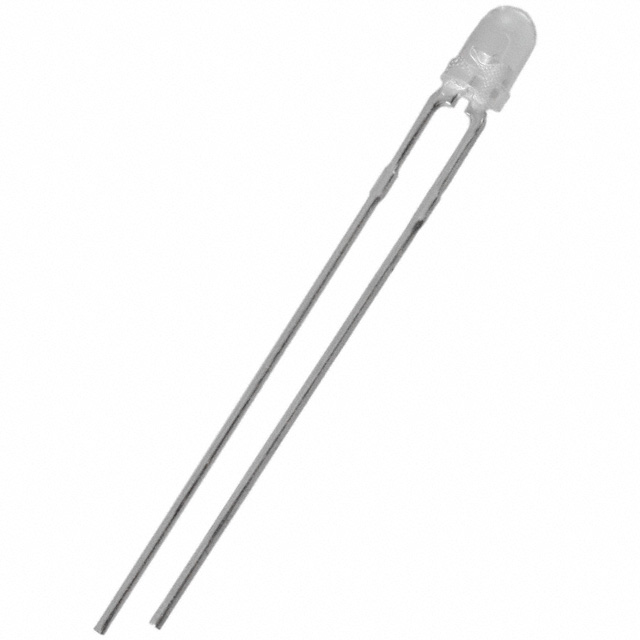

WP710A10QBC/G

Description：LED BLUE CLEAR T-1 T/H
Series：-
Mfr：Kingbright
Package：Bulk

SKU:a32e372755c8 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WP710A10QBC/G is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED BLUE CLEAR T-1 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for WP710A10QBC/G

Description：LED BLUE CLEAR T-1 T/H
Series：-
Mfr：Kingbright
Package：Bulk
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：2800mcd
Lens Style：Round with Domed Top
Lens Size：3mm, T-1
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Through Hole
Wavelength - Dominant：465nm
Wavelength - Peak：461nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1
Size / Dimension：2.90mm Dia
Height (Max)：5.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for WP710A10QBC/G

WP710A10QBC/G

LED Indication - Discrete Overview

The Kingbright WP710A10QBC/G is a single-color blue light-emitting diode designed for through-hole mounting in a T-1 (3 mm) package. It features a water-clear lens with a dome shape and emits at a wavelength of 470 nm. The component provides a luminous intensity of 2000 mcd with a viewing angle of 20 degrees. Electrical characteristics include a forward current of 20 mA, a forward voltage of 2 V, and a power rating of 75 mW. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Through-hole T-1 (3 mm) package design
Water-clear dome lens construction
Blue emission at 470 nm wavelength
High luminous intensity of 2000 mcd

LED Indication - Discrete Applications

Indicator lights
Panel illumination
Instrument displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'G' against official Kingbright documentation to confirm compliance details and availability status. Ensure the ordering part number matches the exact electrical and optical specifications required for the application. Cross-reference datasheet parameters before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-intensity blue indication with a narrow beam profile. The 20-degree viewing angle suits focused lighting needs. Consider the 20 mA forward current and 75 mW power rating when designing drive circuits. Verify thermal management requirements for operation up to +85°C.

LED Indication - Discrete Part Context

This LED belongs to the WP710 series from Kingbright, which offers various colors and intensities in the standard T-1 (3 mm) form factor. The series supports diverse indicator applications through different lens treatments and emission wavelengths. The WP710A10QBC/G specifically targets blue light requirements with high brightness output.
