WP710A10SURCK

LED Indication - Discrete Overview

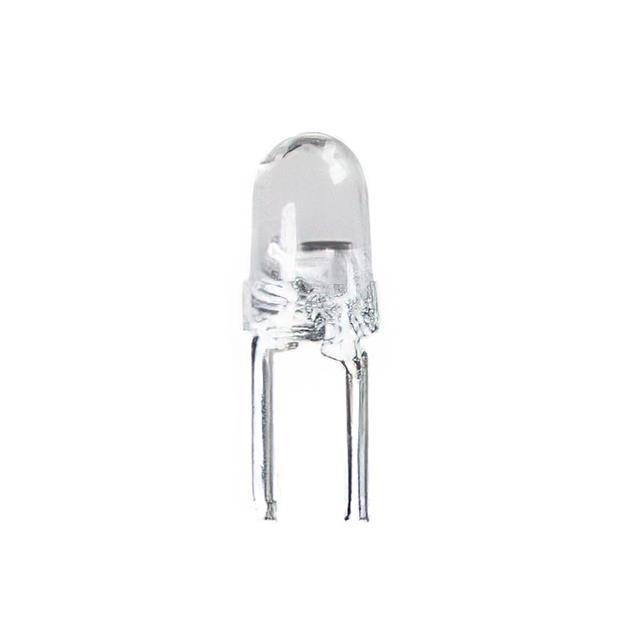

The Kingbright WP710A10SURCK is a single-color red LED component designed for through-hole mounting. It features a T-1 (3 mm) package with a dome-shaped lens and water-clear transparency. The device emits light at a peak wavelength of 630 nm with a viewing angle of 34 degrees. Key electrical parameters include a forward current rating of 20 mA, a forward voltage of 1.9 V, and a power dissipation limit of 75 mW. The typical luminous intensity is specified at 2500 mcd.

LED Indication - Discrete Feature Summary

• Utilizes a standard T-1 (3 mm) radial leaded form factor for easy insertion into printed circuit boards.
• Features a water-clear dome lens to provide high transmission efficiency and a defined 34-degree viewing angle.
• Engineered for low-power operation with a 75 mW maximum power rating and 20 mA forward current capability.

LED Indication - Discrete Applications

• Panel indicator lights for electronic equipment
• Status indication in control systems
• General-purpose visual signaling devices

LED Indication - Discrete Procurement Notes

Verify the exact suffix 'K' against the manufacturer's official datasheet to confirm specific binning or tolerance variations. Ensure the ordering part number matches the required lens transparency and intensity grade. Cross-reference the RoHS compliance status with the latest product change notifications from Kingbright before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm red LED with a narrow viewing angle is required. The water-clear lens offers higher brightness compared to diffused variants. Ensure the circuit design accommodates the 1.9 V forward voltage drop and limits current to 20 mA to stay within the 75 mW power dissipation limit.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP710 series, which consists of standard 3 mm through-hole LEDs. The series offers various colors and lens types. The WP710A10SURCK specifically denotes the red emission variant with water-clear optics, distinguishing it from diffused or tinted lens options within the same physical package family.

LED Indication - Discrete FAQ

What is the viewing angle of the WP710A10SURCK?

The viewing angle is 34 degrees, characteristic of the water-clear lens configuration.

Is the lens of this LED diffused?

No, the WP710A10SURCK features a water-clear lens, providing a focused beam rather than a diffused spread.
