WP710A10SURDK

LED Indication - Discrete Overview

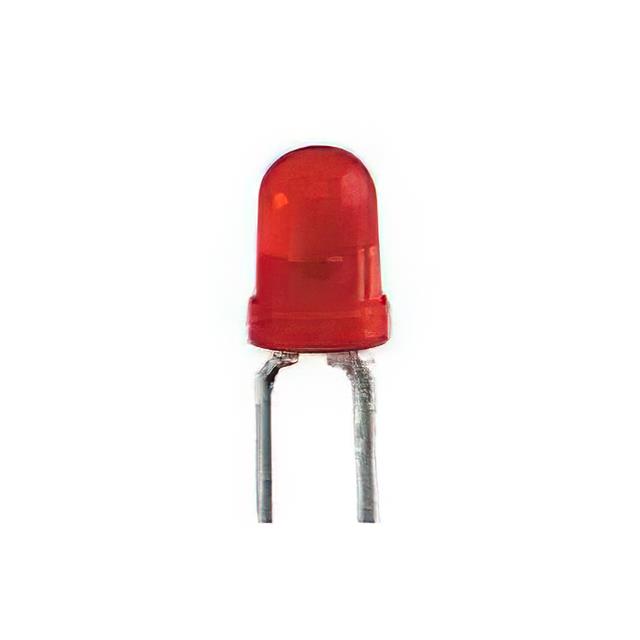

The Kingbright WP710A10SURDK is a single red LED component belonging to the T-1 (3 mm) package series. It features a diffused lens with a viewing angle of 40 degrees and emits light at a peak wavelength of 625 nm. The device has a luminous intensity of 3 mcd, operates with a forward current of 20 mA, and requires a forward voltage of 2 V. Power dissipation is rated at 75 mW. The unit supports an operating temperature range from -40°C to +85°C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Utilizes Gallium Arsenide Phosphide on Gallium Phosphide material for red illumination
• Features a popular T-1 diameter through-hole package design
• Provides reliable solid-state performance with long operational life

LED Indication - Discrete Applications

• Status indicator applications
• General purpose illuminator tasks

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'SURDK' against the official Kingbright datasheet to confirm the exact lens tint and diffusion characteristics. Ensure that the required forward current and voltage parameters align with the target circuit design before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm through-hole red LED is required for general indication purposes. Consider the 40-degree viewing angle and 3 mcd intensity for visibility requirements in the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the WP710A family of single-color LEDs manufactured by Kingbright. The series is characterized by low power consumption and rugged construction suitable for various electronic display and indicator needs.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
