WP710A10WG1C

LED Indication - Discrete Overview

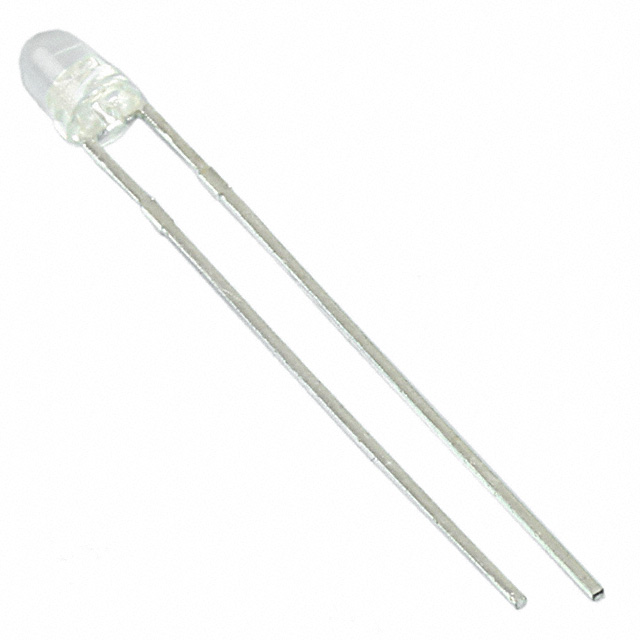

The Kingbright WP710A10WG1C is a single-color green light-emitting diode designed for through-hole mounting. It features a T-1 (3 mm) package with a dome-shaped lens and water-clear transparency. The component emits light at a peak wavelength of 505 nm with a luminous intensity of 5800 mcd. Electrical characteristics include a forward current of 20 mA, a forward voltage of 2 V, and a power rating of 75 mW. The viewing angle is specified at 34 degrees, and it operates within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Emits green light at a 505 nm peak wavelength
• High luminous intensity of 5800 mcd
• Water-clear dome lens for optical clarity
• Through-hole T-1 (3 mm) package design

LED Indication - Discrete Applications

• Panel indicator lighting
• Instrumentation status display
• General electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the obsolete status of this specific part number before procurement planning. Confirm availability of substitute components from Kingbright or third-party distributors. Ensure that replacement parts match the required electrical parameters and mechanical dimensions for seamless integration into existing designs.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-brightness green indication in a standard 3 mm through-hole form factor. Consider the 505 nm wavelength for visibility requirements. Verify thermal management capabilities given the 75 mW power rating and operating temperature limits when designing the circuit layout.

LED Indication - Discrete Part Context

This component belongs to the Kingbright WP710 series of single-color LEDs. The series offers various color options including red, orange, and green variants. The WP710A10WG1C specifically provides high-intensity green output suitable for clear visual signaling in industrial and consumer electronics.

LED Indication - Discrete Replacement Considerations

Kingbright lists similar substitutes for this obsolete part. Verify compatibility of alternative green LEDs with matching 3 mm T-1 packages and comparable 505 nm wavelengths. Check datasheets for equivalent forward voltage and current ratings to ensure direct functional replacement.
