WP7113PBC/Z

LED Indication - Discrete Overview

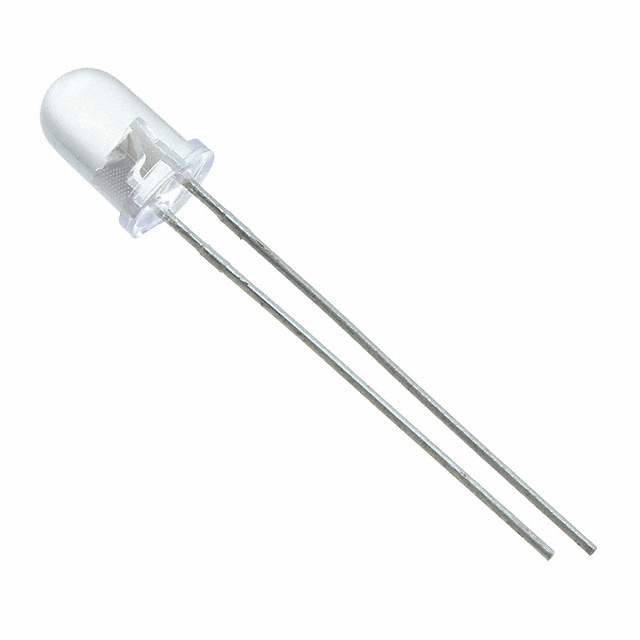

The Kingbright WP7113PBC/Z is a single-color blue LED in a T-1 3/4 (5mm) through-hole package. It features a water-clear dome lens and emits at a peak wavelength of 465 nm. The component operates with a forward current of 10 mA and a forward voltage of 2 V, resulting in a power rating of 62.5 mW. It provides an optical intensity of 80 mcd with a viewing angle of 20 degrees. The device functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Emits blue light with a peak wavelength of 465 nm
• Utilizes a water-clear dome lens for optical transmission
• Designed for low power consumption applications

LED Indication - Discrete Applications

• Panel indicator lighting
• Instrumentation status displays
• General purpose electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix matches the required lens color and emission characteristics. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure that the through-hole mounting style aligns with the target PCB design requirements and thermal management strategies.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm through-hole form factor is required for blue indication. Consider the 20-degree viewing angle and 80 mcd intensity for visibility needs. Evaluate the 10 mA forward current requirement against available drive circuitry capabilities to ensure proper operation without exceeding electrical limits.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP7113 series of T-1 3/4 solid-state lamps. The series offers various emission colors and lens options within the same mechanical footprint. The WP7113PBC/Z specifically denotes the blue emission variant with a clear lens configuration, maintaining compatibility with standard 5mm LED mounting holes.

LED Indication - Discrete Replacement Considerations

Cross-reference compatible parts from other manufacturers offering identical 5mm through-hole dimensions and 465 nm blue emission. Verify matching forward voltage and current ratings to ensure direct substitution without circuit modification.
