WP7113SEC/J4

LED Indication - Discrete Overview

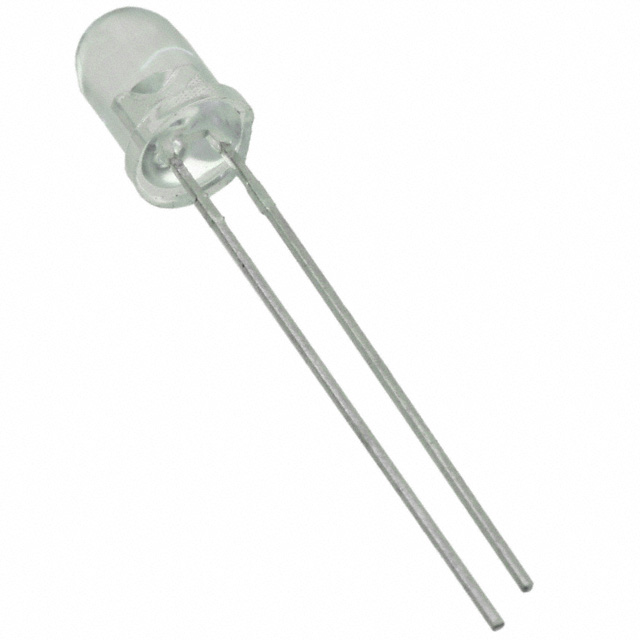

The WP7113SEC/J4 is a single-color orange LED from Kingbright, housed in a T-1 3/4 (5 mm) through-hole package with a dome lens. It emits at 605 nm with a viewing angle of 30 degrees. The component operates at a forward current of 20 mA and a forward voltage of 2 V, with a power rating of 75 mW. Light intensity reaches 2500 mcd. It functions within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Features a popular T-1 3/4 diameter package for standard mounting
• Provides low power consumption characteristics
• Offers a wide 30-degree viewing angle for visibility

LED Indication - Discrete Applications

• Panel indicator lights
• Control panel status indication
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix J4 against official Kingbright documentation to confirm tape and reel packaging availability. Ensure the ordering code matches the required bulk or reel format. Cross-reference RoHS compliance details directly with the manufacturer's latest datasheet before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a 5 mm through-hole orange LED with a 30-degree beam is required. It suits applications needing moderate light intensity at 2500 mcd. Consider the 20 mA forward current limit and 2 V drop for circuit design. Verify thermal limits for high-temperature environments up to 85 C.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP7113 series of single-color LEDs. The series utilizes standard T-1 3/4 packages for reliable through-hole integration. The SEC designation specifies the orange color variant with clear lens optics, distinct from diffused or solid-state lamp variants in the same family.

LED Indication - Discrete Replacement Considerations

WP7113SEC is a compatible alternative offering identical electrical and mechanical specifications but typically supplied in bulk rather than tape and reel. Verify that the non-J4 suffix meets the specific packaging requirements of the assembly line.
