WP7113SRC/DU

LED Indication - Discrete Overview

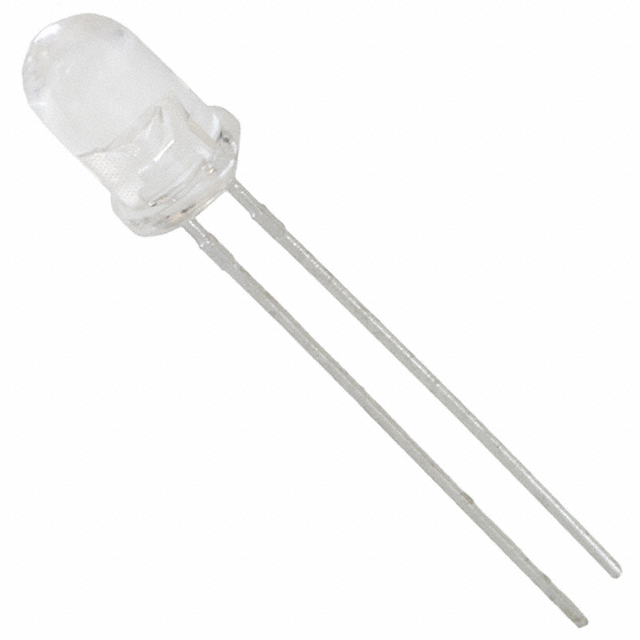

The WP7113SRC/DU is a super bright red single-color LED from Kingbright, housed in a T-1 3/4 (5 mm) through-hole package. It features a water clear lens and emits at a dominant wavelength of 640 nm. Key electrical parameters include a forward current of 20 mA, a forward voltage of 1.85 V, and a power rating of 75 mW. The component offers a luminous intensity of 500 mcd and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Super bright red illumination with high luminous intensity
• Water clear dome lens for focused light output
• Standard T-1 3/4 (5 mm) through-hole package design
• Reliable solid-state construction with long operational life

LED Indication - Discrete Applications

• General purpose indicator lamps
• Panel status indication
• Instrumentation displays
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix DU against the manufacturer's latest datasheet to confirm lens transparency and intensity binning. Ensure the procurement source provides valid RoHS compliance documentation. Check for any product change notifications that may affect lead times or material composition prior to ordering.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm through-hole red LED with moderate brightness is required. The 1.85 V forward voltage suits low-voltage logic circuits. Consider alternative intensities if higher visibility is needed, or diffused lenses if wide-angle viewing is preferred over the water clear specification.

LED Indication - Discrete Part Context

This part belongs to Kingbright's T-1 3/4 series of general-purpose LEDs. The series utilizes Gallium Aluminum Arsenide technology for red emission. The WP7113SRC/DU variant specifically targets applications requiring reliable, cost-effective visual signaling in compact electronic assemblies.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
