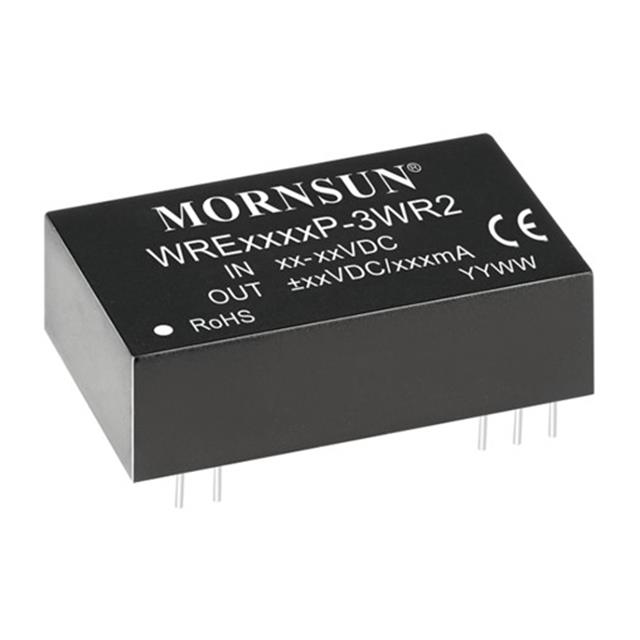

WRE0512P-3WR2

WRE0512P-3WR2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for WRE0512P-3WR2

• Description：ISOLATED MODULE DC DC CONVERTER
• Series：WRE_P- 3WR2 (3W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：125mA, 125mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 10 Leads
• Size / Dimension：1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：60950-1; 62368-1

DC DC Converters datasheet and documents for WRE0512P-3WR2
