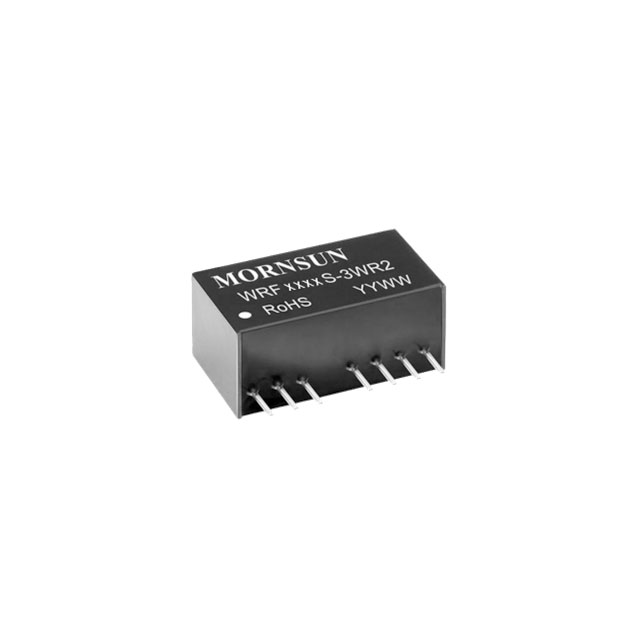

WRF4805S-3WR2

WRF4805S-3WR2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for WRF4805S-3WR2

• Description：ISOLATED MODULE DC DC CONVERTER
• Series：WRF_S - 3WR2 (3W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：60950-1

DC DC Converters datasheet and documents for WRF4805S-3WR2
