X10CB1-16.3676MHZ-T

Crystals Overview

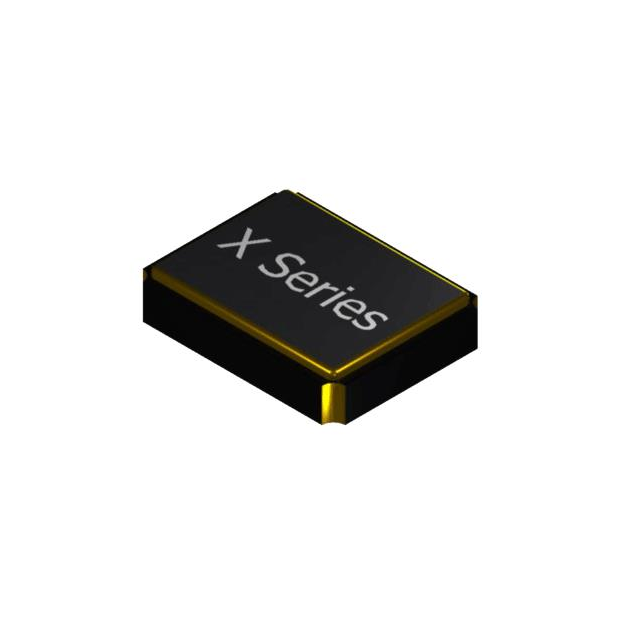

The X10CB1-16.3676MHZ-T is a surface-mount passive crystal from the MMD X series, designed for space-constrained applications. It features a compact 2mm x 2.5mm 4-SMD no-lead ceramic package. The component operates at a nominal frequency of 16.3676 MHz with a frequency tolerance of ±15ppm and stability of ±30ppm. Key electrical parameters include a load capacitance of 10pF and an equivalent series resistance (ESR) of 120 Ohms. It supports an operating temperature range of -20°C to +70°C.

Crystals Feature Summary

• Compact 2x2.5mm 4-SMD no-lead ceramic package optimized for miniaturized designs
• High frequency stability with ±15ppm tolerance and ±30ppm total stability
• Standard 10pF load capacitance simplifies circuit matching requirements

Crystals Applications

• Bluetooth low energy modules
• Low-power IoT sensor nodes
• Miniature wearable electronics

Crystals Procurement Notes

Verify the specific frequency suffix matches the design requirement of 16.3676 MHz. Confirm the package type is 4-SMD No Lead. Ensure the operating temperature range of -20°C to +70°C meets the environmental constraints of the target application. Cross-reference the ESR value of 120 Ohms with the oscillator circuit design.

Crystals Selection Notes

Select this component when board real estate is limited due to its small 2x2.5mm footprint. Choose based on the required 16.3676 MHz frequency and ±15ppm tolerance. Consider the 120 Ohm ESR for oscillator startup reliability. Verify that the -20°C to +70°C temperature range is sufficient for the intended operational environment.

Crystals Part Context

This part belongs to the MMD X series of miniature crystals. The series is characterized by its small form factor, specifically the 2x2.5mm package size. It targets modern consumer electronics where space efficiency is critical. The product line includes various frequencies within the MHz range.

Crystals Replacement Considerations

Direct substitutes must match the 16.3676 MHz frequency, 10pF load capacitance, and 4-SMD No Lead package. Check ESR compatibility at 120 Ohms. Verify identical temperature ratings of -20°C to +70°C.
