X3LEEJNANF-32.000000

Crystals Overview

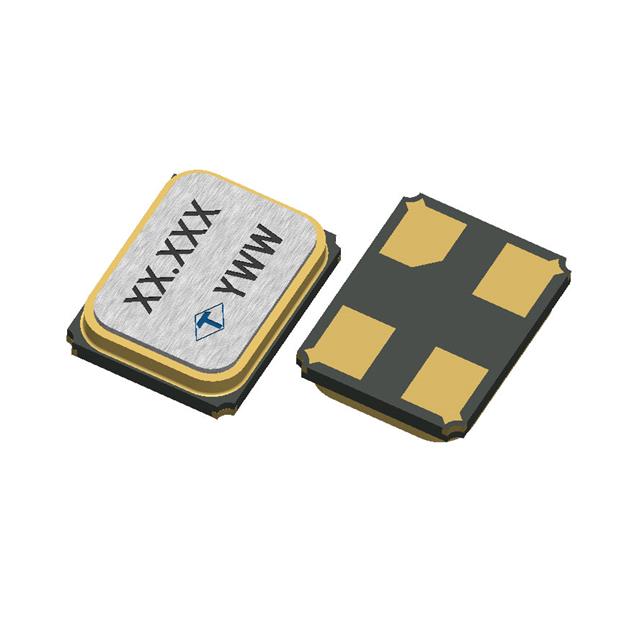

The Taitien X3LEEJNANF-32.000000 is a surface-mount crystal oscillator operating at a fundamental frequency of 32 MHz. It features a load capacitance of 6 pF and a frequency stability of ±30 ppm. The component utilizes a 4-SMD, No Lead package with dimensions of 1.60mm x 1.20mm and a maximum height of 0.45mm. It supports an operating temperature range of -20°C to +70°C and complies with RoHS3 standards.

Crystals Feature Summary

• Fundamental mode operation for precise frequency generation
• Miniature surface-mount design for space-constrained PCB layouts
• RoHS3 compliant construction for environmental safety

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix 'J' against the official Taitien datasheet to confirm exact electrical tolerances and pin configuration. Ensure the selected variant matches the required load capacitance and frequency stability for the target application circuit. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Crystals Selection Notes

Select this component when a 32 MHz fundamental frequency is required in a compact 1.60x1.20mm footprint. Consider the ±30 ppm stability and -20°C to +70°C temperature range against system requirements. Verify compatibility with the host circuit's load capacitance specifications before finalizing the design.

Crystals Part Context

This part belongs to the Taitien X3 series of miniature SMD crystals. The series offers various frequencies and packages designed for high-reliability applications. The X3LEEJNANF-32.000000 specifically targets cost-sensitive designs requiring stable timing in small form factors.

Crystals Replacement Considerations

Public confirmed substitutes include Taitien X3LEELNANF-32.000000 and CTS-Frequency Controls 416F48033CTR. Verify parameter equivalence and package compatibility before substitution.
