X5HGGJNINF-100.000000

Crystals Overview

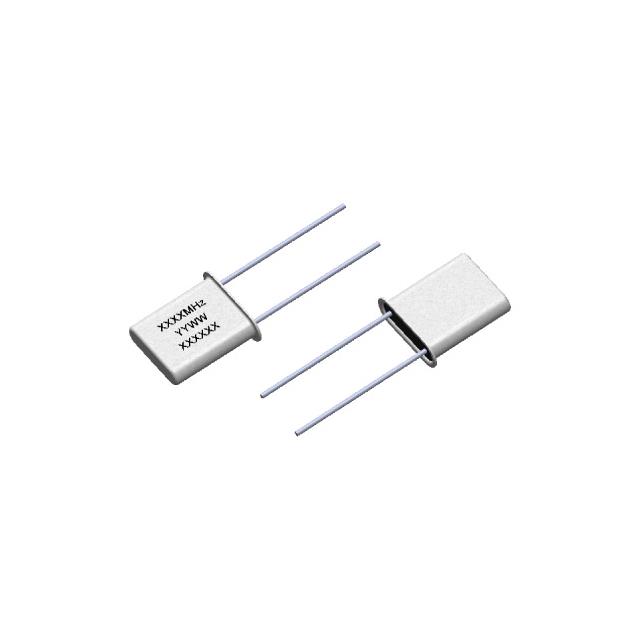

The X5HGGJNINF-100.000000 is a 100 MHz fundamental mode crystal resonator manufactured by Taitien. It features a frequency stability of ±5ppm and a load capacitance of 20pF with an equivalent series resistance (ESR) of 120 Ohms maximum. The component utilizes HC-45U packaging, measuring 8.6 x 3.1 x 8 mm. It employs cold welding and gold electrode technology for high stability and low temperature frequency coefficient.

Crystals Feature Summary

• Utilizes cold welding and vacuum fast warm-up technology for enhanced performance
• Features gold electrodes to ensure high stability and low temperature frequency coefficient
• Designed as a fundamental mode crystal resonator for precise timing applications

Crystals Applications

• MP3 players
• MP4 players
• High-frequency timing circuits

Crystals Procurement Notes

Verify the specific package type HC-45U and pin configuration against your PCB footprint requirements before ordering. Confirm that the 120 Ohms ESR limit aligns with your oscillator circuit design specifications. Ensure the ±5ppm stability meets your system's clock accuracy needs. Check RoHS compliance status if required by your manufacturing standards.

Crystals Selection Notes

Select this component when a 100 MHz fundamental frequency with high precision is required. The HC-45U package suits applications needing robust through-hole mounting. Consider the 20pF load capacitance compatibility with your host circuit. The gold electrode construction offers advantages in environments requiring long-term frequency stability.

Crystals Part Context

This part belongs to Taitien's high-frequency crystal resonator lineup. It is distinct from surface-mount crystals like the XY series due to its HC-45U form factor. The model indicates a 100 MHz output, differentiating it from lower frequency variants in the same product family.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
