X60003BIG3-50

Overview

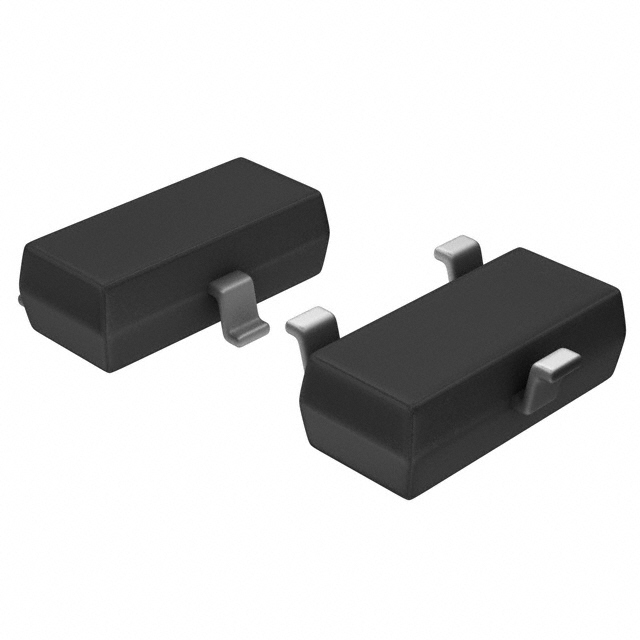

The X60003BIG3-50 is a precision voltage reference utilizing Intersil’s proprietary Floating Gate Analog (FGA) technology, offering superior performance over conventional band gap or buried zener designs. It provides an initial accuracy of ±1.0mV (B grade) and features ultra-low power supply current of 500nA. The device exhibits a low temperature coefficient of 10ppm/°C (B grade) and supports 10mA source and sink current capability with a very low dropout voltage of 100mV at no load. Input voltage ranges are 4.5V to 9.0V for the -41 variant and 5.1V to 9.0V for the -50 variant. It includes 5kV ESD protection (human body model) and operates within a temperature range of -40°C to +85°C in a standard 3-lead SOT-23 package.

Feature Summary

• Fabricated using proprietary Floating Gate Analog technology for high precision and stability
• Ultra-low power consumption with 500nA supply current
• High initial accuracy of ±1.0mV and low temperature coefficient of 10ppm/°C
• Robust 5kV ESD protection rating

Applications

• High resolution A/Ds and D/As
• Digital meters and calibration systems
• Precision current sources and regulators
• Smart sensors and strain gage bridges
• Battery management systems

Procurement Notes

Verify component status as obsolete through official Renesas channels. Confirm RoHS compliance and lead-free packaging specifications. Check for available evaluation boards such as the X60003-EVALZ for design validation. Ensure sourcing from authorized distributors to guarantee authenticity and traceability of this legacy analog component.

Selection Notes

Select this part for applications requiring high precision and minimal power consumption. The FGA technology offers better long-term stability compared to traditional references. Consider input voltage requirements when choosing between variants. Evaluate thermal performance within the specified operating range. Verify compatibility with system noise and regulation needs.

Part Context

The X60003 series represents a line of high-precision voltage references developed by Intersil, now part of Renesas Electronics. These components leverage advanced floating gate technology to achieve performance levels unattainable with standard band-gap references. The series is designed for industrial and portable systems demanding high accuracy and low power operation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the component is marked obsolete, consult Renesas technical support for potential cross-reference recommendations or newer generation alternatives.
