X6SFEININF-100.000000

Crystals Overview

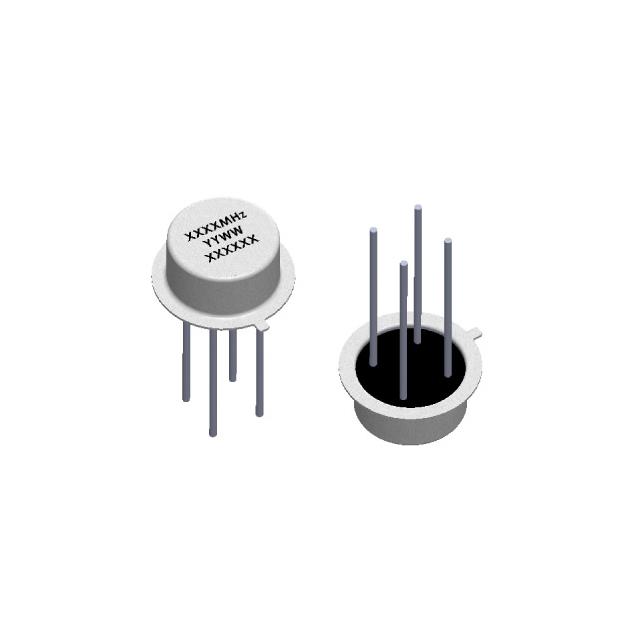

The Taitien X6SFEININF-100.000000 is a 100 MHz series crystal oscillator housed in an HC-35U package. It offers a frequency stability of ±4 ppm and features a load resistance of 120 Ohms. This component utilizes gold electrodes and vacuum sealing to ensure low phase noise, good aging characteristics, and excellent shock and vibration resistance. Designed for medium and higher frequency applications, it provides reliable timing solutions for electronic circuits requiring precise clock signals.

Crystals Feature Summary

• Gold electrode construction for enhanced performance
• Vacuum sealed design ensuring long-term stability
• Miniature HC-35U package suitable for space-constrained boards
• Optimized for low phase noise and high reliability

Crystals Applications

• High-frequency digital signal processing systems
• Precision communication equipment clocks
• Medical instrumentation timing references
• Industrial control system oscillators

Crystals Procurement Notes

Verify the exact datasheet version from Taitien Electronics Co., Ltd. before procurement. Confirm that the HC-35U package dimensions match your PCB footprint requirements. Ensure the ±4 ppm stability specification meets your system's timing tolerance needs. Check RoHS compliance status if required by your manufacturing standards. Request official documentation to validate the gold electrode and vacuum sealing claims.

Crystals Selection Notes

Select this component when a 100 MHz reference with ±4 ppm stability is required in a compact form factor. The HC-35U package suits applications needing robust shock and vibration resistance. Consider the 120 Ohm load resistance for circuit compatibility. Evaluate the low phase noise characteristic against your signal integrity requirements. Ensure the operating temperature range aligns with your environmental conditions.

Crystals Part Context

This part belongs to the Taitien X6 series of crystals, specifically designed for medium and higher frequency applications. The HC-35U designation indicates the physical package type, which is a standard miniature housing for surface-mount or through-hole implementations depending on the specific variant. The series emphasizes reliability through vacuum sealing and gold electrode technology.

Crystals Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must consult Taitien directly for equivalent components or cross-reference with other manufacturers offering similar HC-35U 100 MHz crystals with comparable stability and electrical parameters.
