X7SPAHNHNF-10.000000

Crystals Overview

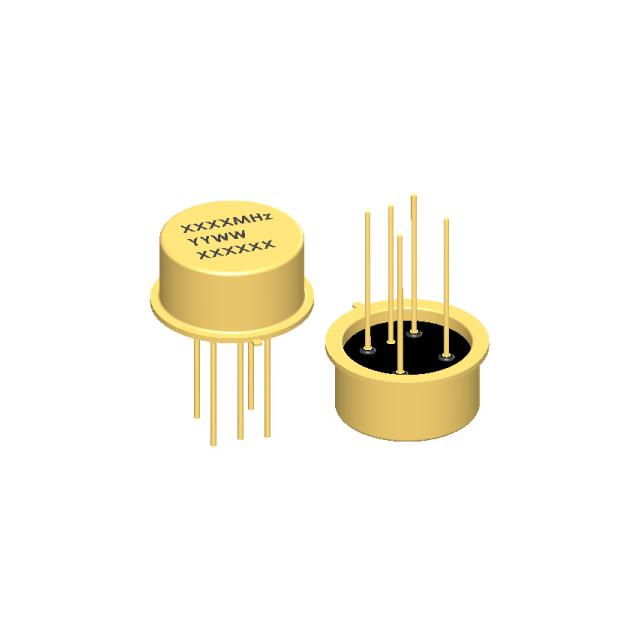

The Taitien X7SPAHNHNF-10.000000 is an active MHz crystal operating at a nominal frequency of 10 MHz with a ±1.5ppm tolerance. It utilizes HC-37U packaging, measuring 15.20mm in diameter and 5.20mm in height. Designed for through-hole mounting, it supports a load capacitance configuration of series. The component functions within an operating temperature range of -55°C to 125°C, ensuring reliability across diverse environmental conditions.

Crystals Feature Summary

• Features gold electrodes and vacuum sealing for enhanced durability
• Delivers high Q value and high stability for precise timing
• Exhibits low phase noise characteristics
• Provides excellent shock and vibration performance due to four-point mounting

Crystals Applications

• Timing-critical electronic applications
• Aerospace systems requiring robust timing components
• Industrial equipment demanding high stability crystals

Crystals Procurement Notes

Verify the specific datasheet version for the X7SPAHNHNF-10.000000 to confirm detailed electrical parameters and mechanical drawings before integration. Ensure that the supplier provides official documentation from Taitien to validate authenticity. Cross-reference the HC-37U package dimensions with PCB layout requirements to guarantee proper fit and soldering compatibility during assembly processes.

Crystals Selection Notes

Select this component when high frequency stability and resistance to environmental stressors are required. The wide operating temperature range makes it suitable for harsh environments. Consider the series load capacitance requirement for circuit design compatibility. The vacuum-sealed construction offers superior longevity compared to standard packaged crystals in demanding applications.

Crystals Part Context

This part belongs to the Taitien X7 series of MHz crystals, which are engineered for precision timing applications. The manufacturer specializes in crystal devices, oscillators, and atomic clocks, supporting sectors such as aerospace. The HC-37U form factor is a standard through-hole package known for its robustness and consistent performance in various electronic circuits.

Crystals Replacement Considerations

Consult official Taitien documentation for direct substitutes. Verify equivalent frequency, tolerance, and package dimensions when considering alternative parts. Ensure any replacement maintains the required operating temperature range and mounting type to preserve system integrity.
