X8GEBGNHNF-16.384000

Crystals Overview

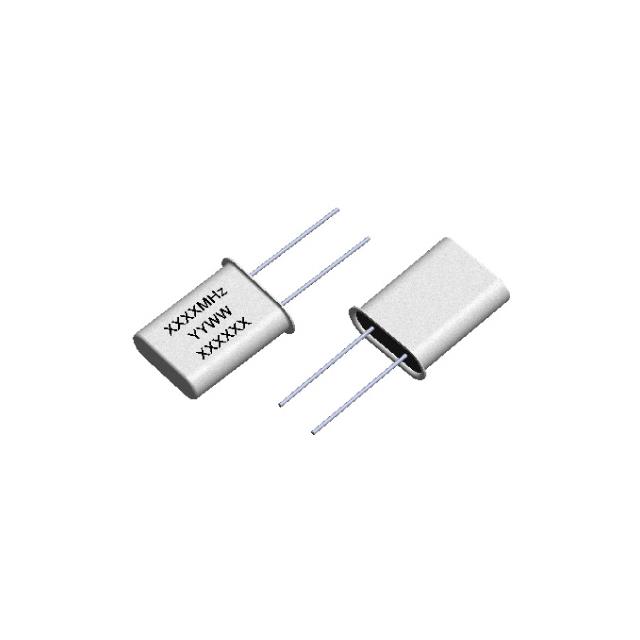

The X8GEBGNHNF-16.384000 is a 16.384 MHz crystal oscillator manufactured by Taitien Electronics. It operates at a nominal frequency of 16.384 MHz with a frequency tolerance of ±3 ppm and a load capacitance of 18 pF. The component features an HC-43/U package and exhibits an equivalent series resistance (ESR) of 105 Ohms. Key technical attributes include gold electrodes, vacuum sealing, high Q value, high stability, and reliable aging characteristics.

Crystals Feature Summary

• Gold electrode construction for enhanced conductivity
• Vacuum sealed design ensuring environmental protection
• High Q value contributing to superior frequency stability

Crystals Applications

• Aerospace timing systems
• Precision measurement instruments
• Industrial control equipment

Crystals Procurement Notes

Verify the specific ordering suffix against official Taitien documentation to ensure compatibility with required frequency tolerance and load capacitance specifications. Confirm RoHS compliance status through the manufacturer's current datasheet before procurement. Cross-reference the part number with authorized distributors to validate authenticity and avoid counterfeit components.

Crystals Selection Notes

Select this component when precise frequency stability is critical for system synchronization. The HC-43/U package offers a compact form factor suitable for space-constrained designs. Consider the ±3 ppm tolerance and 105 Ohm ESR parameters to ensure compatibility with the target circuit's oscillator requirements and load conditions.

Crystals Part Context

This model belongs to Taitien's range of crystal oscillators designed for high-reliability applications. The product line supports various industries requiring stable timing references. The specific configuration utilizes standard quartz technology with specialized packaging to maintain performance under demanding operational conditions.

Crystals Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify that any replacement matches the 16.384 MHz frequency, 18 pF load capacitance, and HC-43/U package dimensions. Ensure electrical parameters such as ESR and tolerance meet or exceed original specifications.
