X9001558-3GDRMB

Antennas RF Overview

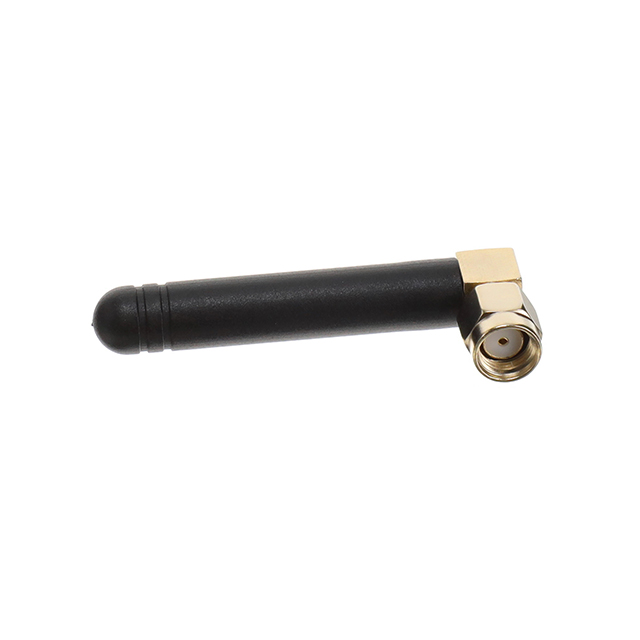

The X9001558-3GDRMB is an external whip antenna manufactured by KYOCERA AVX, designed for cellular and ISM applications. It operates within a frequency range of 1.71 to 2.17 GHz, supporting 2G, 3G, LTE, SigFox, LoRa, Z-Wave, and IoT/M2M protocols. The component features a linear polarization with a gain of 1.2 dBi and a characteristic impedance of 50 ohms. This model is part of the broader X9001558 series, which includes variants such as the X9001558-3GDSMB.

Antennas RF Feature Summary

• Supports multiple wireless standards including GSM, LTE, 2G/3G, and LPWAN technologies like LoRa and SigFox
• Designed for external mounting with a whip antenna configuration
• Optimized for IoT and M2M communication modules

Antennas RF Applications

• Smartphone and Tablet PC connectivity modules
• Wearable device communication interfaces
• Industrial equipment telemetry systems
• Automotive infotainment and safety equipment

Antennas RF Procurement Notes

Verify the specific suffix (DRMB vs DSMB) against the required connector type before ordering, as these denote different mechanical interfaces. Confirm RoHS compliance status directly with the manufacturer or authorized distributor documentation. Ensure the selected variant matches the intended PCB footprint and cable assembly requirements for the target application design.

Antennas RF Selection Notes

Select this component when designing for multi-band cellular and low-power wide-area network integration. The 1.2 dBi gain provides adequate performance for compact form factors. Consider the X9001558-3GDSMB if a different connector interface is required. Validate frequency coverage against specific regional band allocations for 2G/3G/LTE operations.

Antennas RF Part Context

This antenna belongs to the X9001558 series from KYOCERA AVX, which specializes in RF components for mobile and industrial communications. The series addresses the need for reliable signal transmission in constrained spaces typical of modern consumer electronics and IoT devices. KYOCERA AVX integrates this product into its broader portfolio of capacitors, connectors, and crystal devices.

Antennas RF Replacement Considerations

The X9001558-3GDSMB serves as a direct mechanical alternative within the same series, differing primarily in connector style. No other cross-model substitutes are publicly confirmed for this specific part number.
