X9001558-3GDSMB

Antennas RF Overview

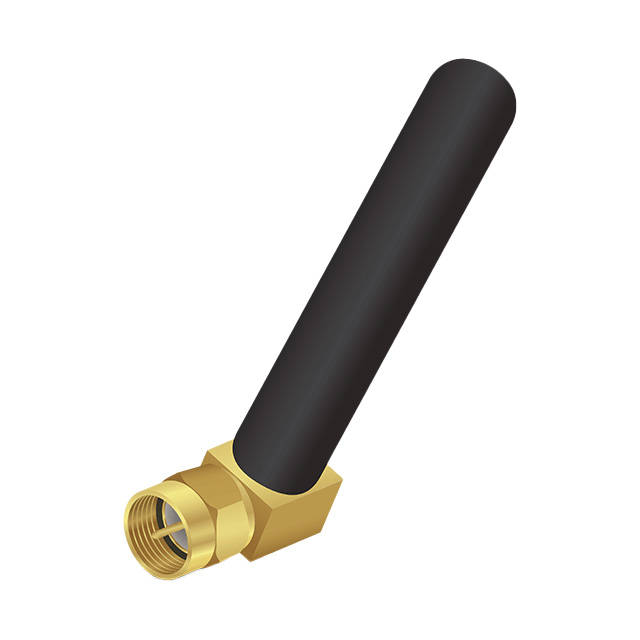

The X9001558-3GDSMB is an external whip antenna manufactured by KYOCERA AVX, designed for ISM, cellular, and LoRa applications. It operates within a frequency range of 1.71 to 2.17 GHz, supporting 2G, 3G, SigFox, LoRa, Z-Wave, and IoT/M2M protocols. The component features a gain of 1.2 dBi, a VSWR of 7.2, and a 50 ohm impedance. It utilizes an RP SMA connector for mounting.

Antennas RF Feature Summary

• Supports multiple wireless standards including GSM, 3G, LoRa, and SigFox
• External whip design with RP SMA interface
• Optimized for IoT and M2M communication modules

Antennas RF Applications

• GSM and 3G cellular communication modules
• LoRa and SigFox IoT devices
• Z-Wave home automation systems
• Industrial M2M equipment

Antennas RF Procurement Notes

Verify the specific datasheet version and electrical tolerances against the latest manufacturer documentation before integration. Confirm that the RP SMA connector polarity matches the host device interface requirements. Ensure environmental ratings meet the deployment conditions. Cross-reference the part number with official KYOCERA AVX catalogs to avoid counterfeit components.

Antennas RF Selection Notes

Select this antenna when a compact external solution is required for multi-band ISM and cellular frequencies up to 2.17 GHz. Consider the 1.2 dBi gain and 50 ohm impedance for standard RF chain matching. Evaluate the physical dimensions and mounting constraints relative to the target enclosure. Verify compatibility with supported protocols such as LoRa or SigFox if applicable.

Antennas RF Part Context

This component belongs to the external antenna category from KYOCERA AVX, targeting the growing demand for connected devices in industrial and consumer sectors. It addresses the need for reliable short-range wireless connectivity in space-constrained designs. The product supports diverse modulation schemes essential for modern IoT deployments.

Antennas RF Replacement Considerations

Consult official KYOCERA AVX documentation for direct substitutes. Verify frequency range, gain, and connector type compatibility before considering alternative models.
