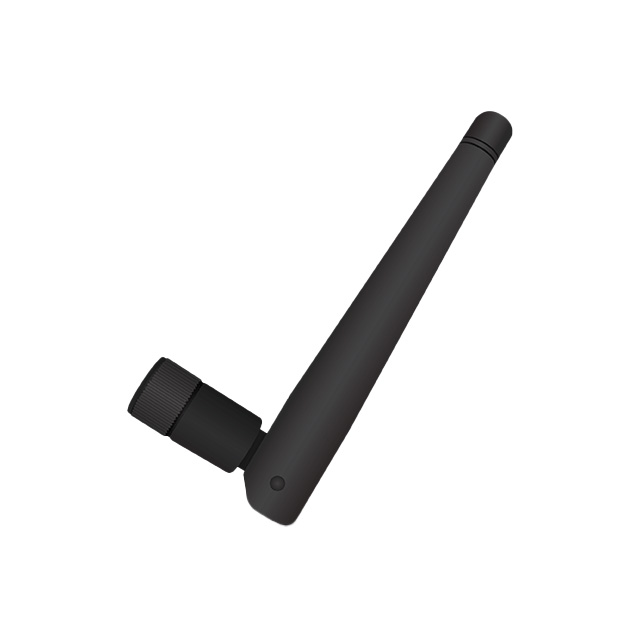

X9003019-W3DSMB is listed in the Antennas RF range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is WI-FI 6E & 7 EXTERNAL WHIP HINGE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for X9003019-W3DSMB
- Description：WI-FI 6E & 7 EXTERNAL WHIP HINGE
- Series：-
- Mfr：KYOCERA AVX
- Package：Bag
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.442GHz, 5.375GHz, 6.562GHz
- Frequency Range：2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.85GHz, 6GHz ~ 7.125GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：2.8dBi, 4.9dBi, 5.5dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.283" (58.00mm)
- Applications：WLAN, Zigbee™
- Power - Max：-
Antennas RF datasheet and documents for X9003019-W3DSMB
Antennas RF Overview
The X9003019-W3DSMB is an external whip antenna designed for Wi-Fi 6E and Wi-Fi 7 applications. It operates within the frequency range of 6 GHz to 7.125 GHz, providing a gain of 5.5 dBi. The component features a right-angle SMA male connector for mounting purposes.
Antennas RF Feature Summary
- Designed specifically for high-frequency Wi-Fi 6E and Wi-Fi 7 standards
- Utilizes an external whip configuration with hinged flexibility
- Equipped with a right-angle SMA male connector for secure attachment
Antennas RF Applications
- Wi-Fi 6E access points and routers
- Wi-Fi 7 networking equipment
- Industrial wireless communication modules
- Commercial IoT devices requiring extended range
Antennas RF Procurement Notes
Verify the specific suffix W3DSMB against official KYOCERA AVX documentation to confirm the right-angle SMA male connector variant. Ensure compatibility with the target device's RF interface before procurement. Cross-reference the part number with current distributor listings to validate availability and authenticity. Confirm that the operating frequency range aligns with the intended application requirements.
Antennas RF Selection Notes
Select this antenna when deploying Wi-Fi 6E or Wi-Fi 7 infrastructure requiring external signal enhancement. The 5.5 dBi gain supports improved coverage in challenging environments. The right-angle connector facilitates space-constrained installations. Evaluate PCB layout and enclosure materials to ensure optimal radiation efficiency and minimal interference during integration.
Antennas RF Part Context
This component belongs to KYOCERA AVX's portfolio of active antenna solutions tailored for industrial, commercial, and automotive sectors. The X9003019 series focuses on next-generation wireless standards, offering reliable performance for high-speed data transmission. It complements other RF components in complex connectivity systems.
Antennas RF Replacement Considerations
The X9003019-W3DRMB is a related variant within the same series. Verify connector orientation and mechanical specifications when considering substitutes. Ensure any replacement maintains the required 6-7.125 GHz frequency range and 5.5 dBi gain characteristics.
