X9003088-3GDSMB

Antennas RF Overview

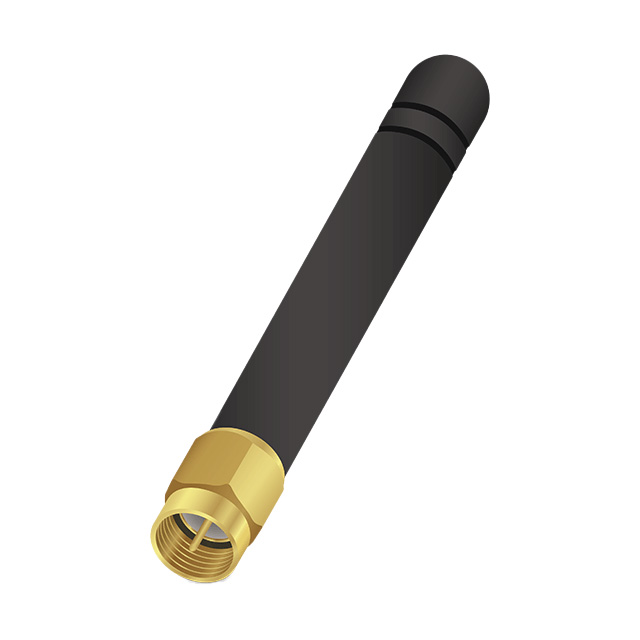

The X9003088-3GDSMB is an external RF antenna manufactured by KYOCERA AVX, designed for IoT and M2M applications. It operates within a frequency range of 1.71 GHz to 2.17 GHz, covering 2G, 3G, cellular, SigFox, LoRa, Z-wave, ISM, and general IoT bands. The component features a linear polarization with a gain of -0 dBi and a characteristic impedance of 50 ohms. It utilizes a straight SMA male connector for mounting and connection. The physical design includes a black whip-style exterior suitable for outdoor or fixed installations.

Antennas RF Feature Summary

• Supports multiple wireless protocols including LoRa, Sigfox, NB-IoT, and cellular standards
• Features a straight SMA male connector for secure interface attachment
• Designed for external mounting with a durable whip structure

Antennas RF Applications

• IoT sensor networks requiring LPWAN connectivity
• LoRa and Sigfox gateway implementations
• NB-IoT and LTE-M device integration
• Z-wave home automation systems
• Industrial M2M communication modules

Antennas RF Procurement Notes

Verify the specific SMA connector gender and cable length requirements against system design specifications before procurement. Confirm that the operating frequency range aligns with the target network band. Ensure the mounting environment supports the external whip form factor. Check for any regional regulatory approvals required for the intended deployment location. Validate impedance matching with the host transceiver module.

Antennas RF Selection Notes

Select this model when a compact external antenna is needed for multi-band IoT applications. It is suitable for devices requiring support for both legacy cellular and modern LPWAN technologies. Consider the -0 dBi gain as sufficient for short-range or line-of-sight deployments. Evaluate the SMA interface compatibility with existing PCB or cable assemblies. This part is appropriate for fixed installations where internal antennas may be insufficient due to enclosure shielding.

Antennas RF Part Context

This component belongs to the KYOCERA AVX portfolio of advanced electronic solutions, specifically within their antenna division. The manufacturer specializes in passive components and connectivity solutions for industrial and consumer electronics. The X9003088 series represents their external antenna offerings tailored for emerging wireless standards. KYOCERA AVX provides these components to support the growing demand for connected devices in smart infrastructure and industrial automation sectors.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Users should evaluate other KYOCERA AVX external antennas with compatible SMA connectors and overlapping frequency ranges. Ensure any alternative maintains the 50-ohm impedance and similar gain characteristics. Verify mechanical dimensions if space constraints are critical. Consult official distributor catalogs for current availability of potential alternatives.
