XAL7030-562MEC

Fixed Inductors Overview

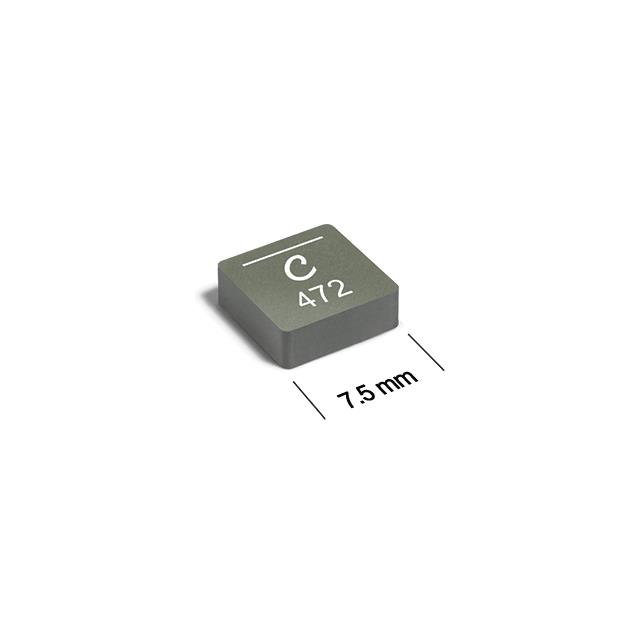

The Coilcraft XAL7030-562MEC is a shielded surface-mount power inductor from the XAL7030 series, designed for automotive applications. It features a molded composite core and standard SMD terminations within a 7.5 mm x 7.5 mm x 3.1 mm package. The component provides an inductance of 5.6 uH with a 20% tolerance. It supports a maximum DC current of 7.3 A and a saturation current of 9.8 A. The maximum DC resistance is 32.32 mOhms, with a self-resilient frequency of 17 MHz. It operates between -40 C and +125 C and holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

• Shielded construction utilizing a molded composite core to minimize electromagnetic interference.
• AEC-Q200 qualified for reliability in demanding automotive environments.
• Surface-mount design optimized for PCB integration in space-constrained layouts.

Fixed Inductors Applications

• Automotive power supply circuits
• DC-DC converter filtering
• On-board charging systems

Fixed Inductors Procurement Notes

Verify the specific suffix (MEC) against official Coilcraft documentation to confirm terminal plating and tape-and-reel specifications. Ensure the requested quantity aligns with factory packaging limits. Confirm RoHS compliance status through the manufacturer's current certification records prior to final procurement authorization.

Fixed Inductors Selection Notes

Select this component when a 5.6 uH inductance value is required with high current handling capabilities up to 7.3 A continuous. The 7.5 mm footprint suits applications needing robust shielding without excessive board area consumption. Consider the 17 MHz self-resonant frequency for switching regulator designs operating below this threshold.

Fixed Inductors Part Context

This part belongs to the XAL7030 series of high-power shielded inductors manufactured by Coilcraft. The series is characterized by low DC resistance and high saturation currents, targeting automotive and industrial power conversion needs. The XAL7030-562MEC specifically denotes the 5.6 uH variant within this standardized product line.

Fixed Inductors Replacement Considerations

Consult official Coilcraft cross-reference guides for direct substitutes. Verify that any alternative maintains identical 7.5 mm dimensions, 5.6 uH inductance, and AEC-Q200 qualification to ensure mechanical and electrical compatibility.
