XB30M00000S430

Crystals Overview

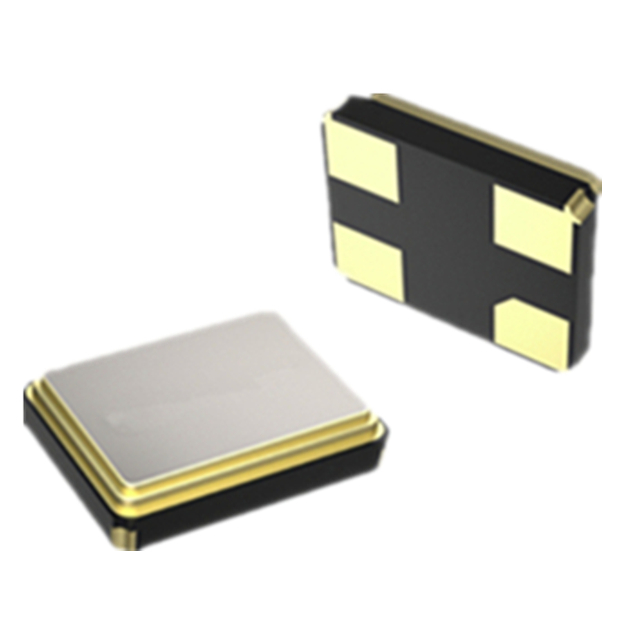

The TGS XB30M00000S430 is a surface-mount crystal oscillator operating at a fundamental frequency of 30 MHz. It features a frequency tolerance of ±30 ppm and a load capacitance of 30 pF. The unit exhibits an equivalent series resistance (ESR) of 40 Ohms. The component is housed in a compact 4-SMD, No Lead package, designed for integration into space-constrained electronic circuits requiring stable clock signals.

Crystals Feature Summary

• Provides precise timing stability with ±30 ppm frequency tolerance
• Designed for low power consumption in portable applications
• Compliant with RoHS standards for environmental safety

Crystals Applications

• Bluetooth modules
• Wireless communication devices
• Broadband fixed line access equipment
• Enterprise systems
• Personal electronics

Crystals Procurement Notes

Verify the specific suffix '430' to ensure correct load capacitance matching. Confirm that the 4-SMD no-lead package aligns with PCB footprint requirements. Check datasheet for reflow soldering profiles to prevent thermal damage during assembly. Ensure ESR compatibility with the host oscillator circuit design.

Crystals Selection Notes

Select this component when a 30 MHz reference signal is required with moderate stability. The 30 pF load capacitance must match the external capacitors used in the circuit. Consider the 40 Ohm ESR for drive level limitations. This part suits applications where size constraints necessitate a surface-mount form factor over through-hole options.

Crystals Part Context

This crystal belongs to the TGS SMD crystal family, characterized by small footprints and high reliability. It serves as a primary clock source for digital logic and microcontrollers. The no-lead design facilitates automated pick-and-place manufacturing processes.

Crystals Replacement Considerations

Cross-reference with XB30M00000S420 if 20 pF load capacitance is acceptable. Verify pinout and dimensional tolerances before substitution. Ensure frequency stability requirements are met by alternative sources.

Crystals FAQ

What is the load capacitance value?

The load capacitance is 30 pF.

Is this component lead-free?

Yes, it complies with RoHS standards and uses a no-lead package.
