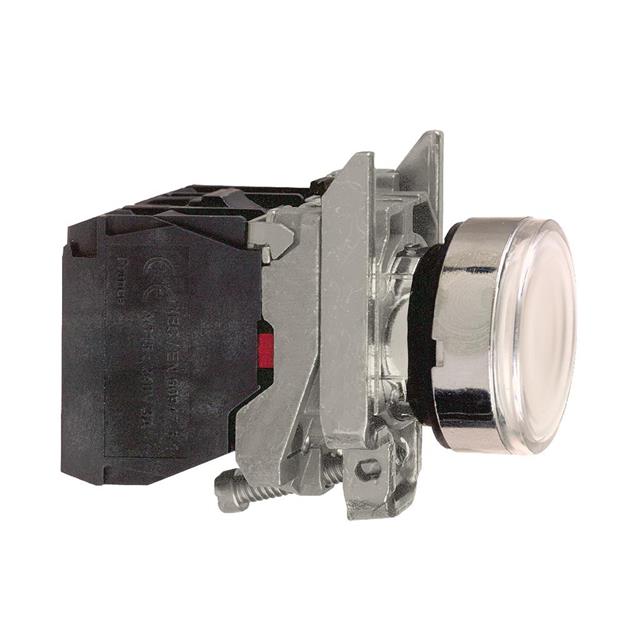

Pushbutton Switches XB4BW3165 product image

XB4BW3165

$87.24

Description：HARMONY XB4, ILLUMINATED PUSH BU
Series：Harmony XB4
Mfr：Schneider Electric
Package：Box

SKU:d64cb5368aa1 Category: Pushbutton Switches Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XB4BW3165 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is HARMONY XB4, ILLUMINATED PUSH BU. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for XB4BW3165

Description：HARMONY XB4, ILLUMINATED PUSH BU
Series：Harmony XB4
Mfr：Schneider Electric
Package：Box
Mounting Type：Panel Mount, Front
Type：Standard, Illuminated
Circuit：DPST-NO/NC
Switch Function：On-Off, Off-On
Current Rating (Amps)：6A (AC), 550mA (DC)
Actuator Type：Round, Button, Flush
Actuator Marking：-
Color - Actuator/Cap：White
Illumination Type, Color：LED, White
Illumination Voltage (Nominal)：250 VAC
Termination Style：Screw Terminal
Ingress Protection：IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof
Features：-
Panel Cutout Dimensions：Circular - 22.00mm Dia
Operating Temperature：-40°C ~ 55°C
Voltage Rating - DC：125 V
Voltage Rating - AC：120 V

Pushbutton Switches datasheet and documents for XB4BW3165

XB4BW3165
