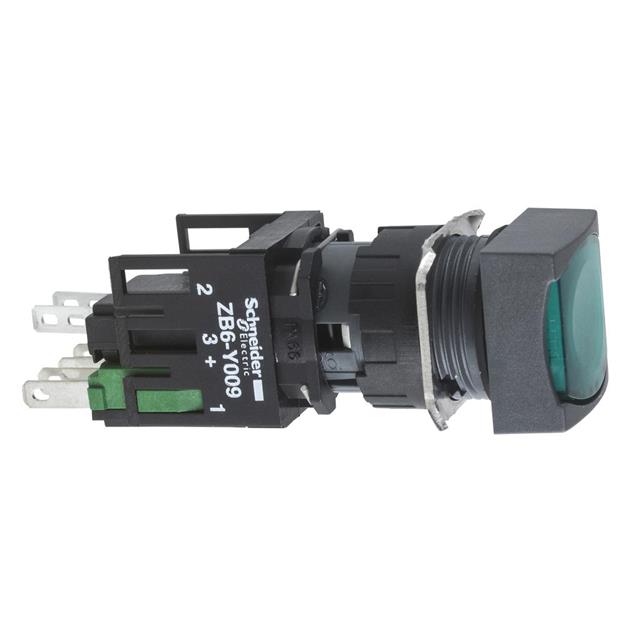

XB6CF3B1B is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is COMPLETE ILLUMINATED PUSH BUTTON. Review the specifications below when checking this part for your BOM.
Pushbutton Switches specifications for XB6CF3B1B
- Description：COMPLETE ILLUMINATED PUSH BUTTON
- Series：Harmony XB6
- Mfr：Schneider Electric
- Package：Box
- Mounting Type：Panel Mount, Front
- Type：Standard, Illuminated
- Circuit：SPST-NO
- Switch Function：On-Off
- Current Rating (Amps)：3A (AC), 220mA (DC)
- Actuator Type：Square, Button
- Actuator Marking：-
- Color - Actuator/Cap：Green
- Illumination Type, Color：LED, Green
- Illumination Voltage (Nominal)：12 VDC
- Termination Style：Quick Connect - 0.110" (2.8mm)
- Ingress Protection：IP65 - Dust Tight, Water Resistant
- Features：-
- Panel Cutout Dimensions：Circular - 16.00mm Dia
- Operating Temperature：-25°C ~ 70°C
- Voltage Rating - DC：125 V
- Voltage Rating - AC：120 V
Pushbutton Switches datasheet and documents for XB6CF3B1B
