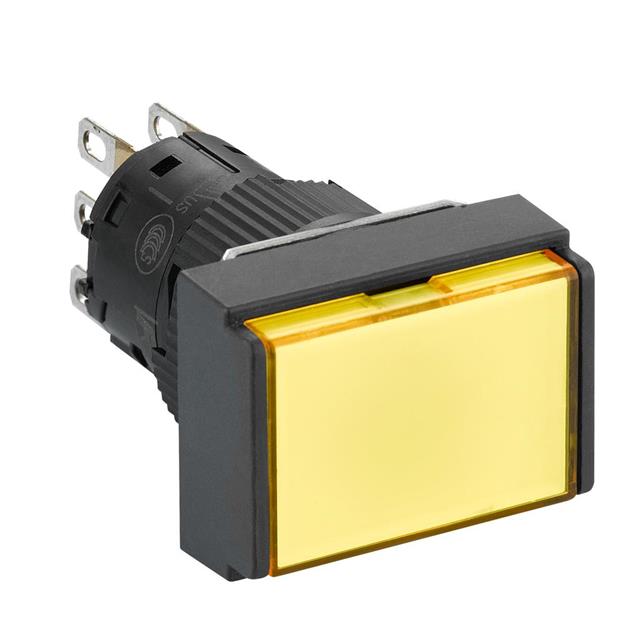

Pushbutton Switches XB6EDW5B1P product image

XB6EDW5B1P

$25.51

Description：ILLUMINATED MONOLITHIC PUSH BUTT
Series：Harmony XB6E
Mfr：Schneider Electric
Package：Box

SKU:4fdeda06845a Category: Pushbutton Switches Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XB6EDW5B1P is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is ILLUMINATED MONOLITHIC PUSH BUTT. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for XB6EDW5B1P

Description：ILLUMINATED MONOLITHIC PUSH BUTT
Series：Harmony XB6E
Mfr：Schneider Electric
Package：Box
Mounting Type：Panel Mount, Front
Type：Standard, Illuminated
Circuit：SPDT
Switch Function：On-On
Current Rating (Amps)：1.5A (AC), 1A (DC)
Actuator Type：Rectangular, Button, Flush
Actuator Marking：-
Color - Actuator/Cap：Yellow
Illumination Type, Color：LED, Yellow
Illumination Voltage (Nominal)：24 VDC
Termination Style：Quick Connect - 0.110" (2.8mm)
Ingress Protection：IP65 - Dust Tight, Water Resistant
Features：-
Panel Cutout Dimensions：Circular - 16.00mm Dia
Operating Temperature：-10°C ~ 55°C
Voltage Rating - DC：24 V
Voltage Rating - AC：120 V

Pushbutton Switches datasheet and documents for XB6EDW5B1P

XB6EDW5B1P
