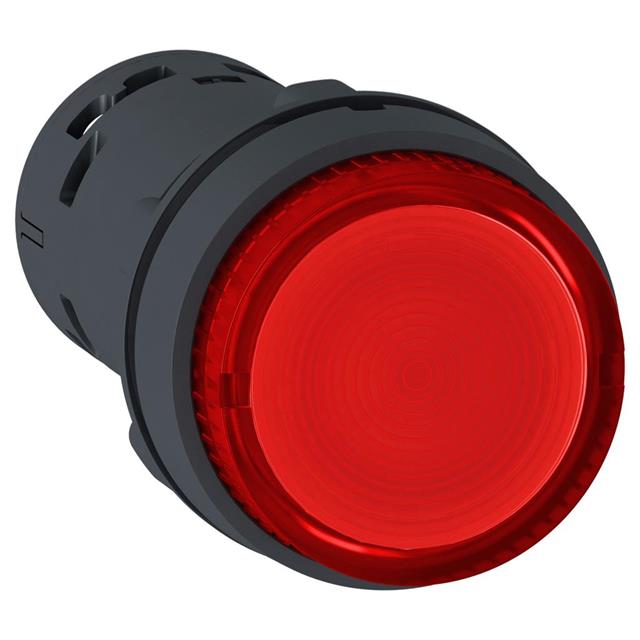

XB7NW34B2 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is HARMONY XB7, MONOLITHIC ILLUMINA. Review the specifications below when checking this part for your BOM.
Pushbutton Switches specifications for XB7NW34B2
- Description：HARMONY XB7, MONOLITHIC ILLUMINA
- Series：Harmony XB7
- Mfr：Schneider Electric
- Package：Box
- Mounting Type：Panel Mount, Front
- Type：Standard, Illuminated
- Circuit：SPST-NC
- Switch Function：Off-On
- Current Rating (Amps)：600mA (AC), 220mA (DC)
- Actuator Type：Round, Button, Flush
- Actuator Marking：-
- Color - Actuator/Cap：Red
- Illumination Type, Color：LED, Red
- Illumination Voltage (Nominal)：24 VDC
- Termination Style：Screw Terminal
- Ingress Protection：IP65 - Dust Tight, Water Resistant
- Features：-
- Panel Cutout Dimensions：Circular - 22.00mm Dia
- Operating Temperature：-25°C ~ 70°C
- Voltage Rating - DC：125 V
- Voltage Rating - AC：120 V
Pushbutton Switches datasheet and documents for XB7NW34B2
