XB8M000000S416

Crystals Overview

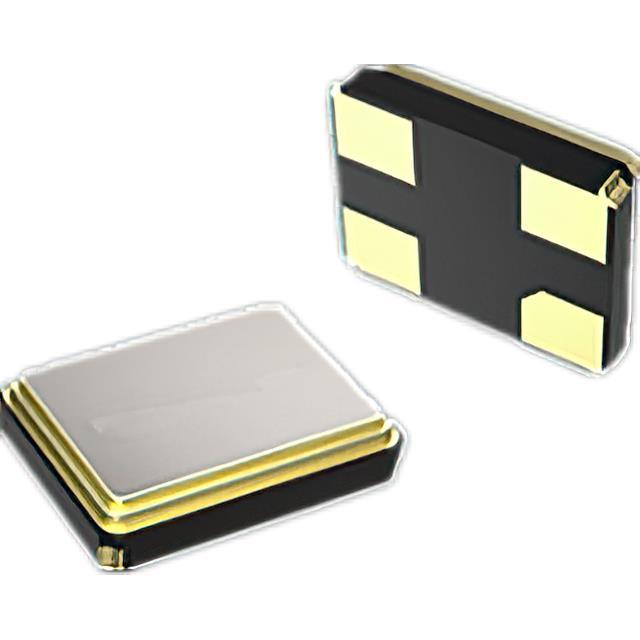

XB8M000000S416 is an 8 MHz fundamental mode crystal oscillator manufactured by TGS. It operates with a frequency stability of ±30ppm and a load capacitance of 16pF. The component features a series resistance of 80 Ohms and utilizes a 4-SMD, No Lead package configuration. This surface-mount device is designed for precise timing applications requiring stable oscillation within specified tolerance limits.

Crystals Feature Summary

• Fundamental frequency operation at 8 MHz
• Compact 4-SMD no-lead surface mount packaging
• Defined load capacitance and series resistance characteristics

Crystals Applications

• General purpose timing circuits
• Microcontroller clock sources
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to ensure correct load capacitance and tolerance specifications. Confirm package dimensions and pin compatibility with PCB footprint requirements prior to procurement. Cross-reference the original part number CM75 8M0A30-16-30-40-80TLF with the next-generation code XB8M000000S416 to validate equivalence in electrical parameters and physical form factor.

Crystals Selection Notes

Select this component when an 8 MHz fundamental crystal with ±30ppm stability is required. Ensure the design accommodates the 16pF load capacitance and 80 Ohm series resistance. Verify that the 4-SMD no-lead package aligns with available assembly capabilities and board space constraints compared to alternative leaded or larger surface mount options.

Crystals Part Context

This part belongs to the TGS crystal oscillator family, specifically utilizing the CM75 series designation. It serves as a replacement or equivalent for the original manufacturer part number CM75 8M0A30-16-30-40-80TLF. The component provides a standardized solution for timing needs within electronic assemblies requiring reliable frequency generation.

Crystals Replacement Considerations

The part XB8M000000S416 corresponds to the original part number CM75 8M0A30-16-30-40-80TLF. Verify electrical parameter equivalence before substitution.
