XC3S1600E-4FG320C

Field Programmable Gate Array Overview

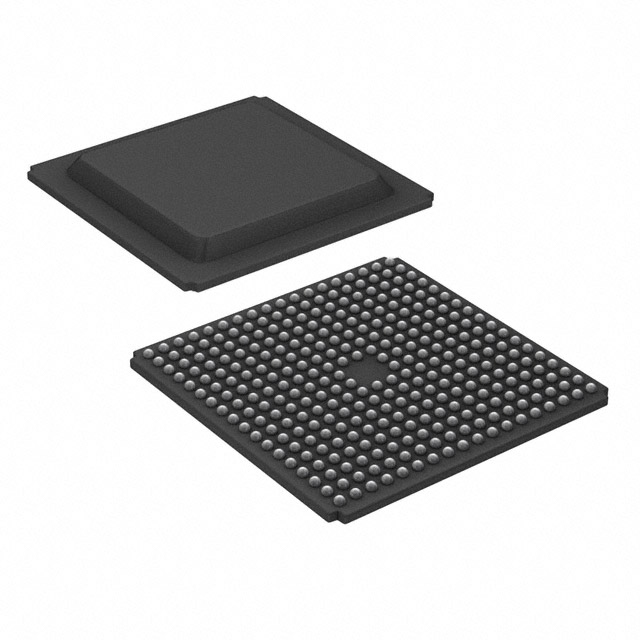

The AMD XC3S1600E-4FGG320C is a Field Programmable Gate Array (FPGA) belonging to the Spartan-3E family, manufactured using a 90nm CMOS process. It provides 1600K system gates and 33,192 logic cells for digital design implementation. The device includes 648Kbit of Block RAM and 231Kbit of distributed RAM, alongside 36 enhanced 18x18 multipliers. It features 228 user I/O pins supporting multiple voltage standards and 8 Digital Clock Managers (DCMs). The component operates within a commercial temperature range of 0°C to 75°C and utilizes a 320-pin FineLine BGA package measuring 27mm x 27mm.

Field Programmable Gate Array Feature Summary

• Supports high-density logic implementation with integrated memory resources for complex data processing tasks.
• Includes dedicated hardware multipliers optimized for digital signal processing applications.
• Provides flexible clock management capabilities through multiple Digital Clock Managers for precise timing control.

Field Programmable Gate Array Applications

• Industrial control systems requiring reliable programmable logic
• Communication equipment interface implementations
• Consumer electronics prototyping and production

Field Programmable Gate Array Procurement Notes

Verify the exact suffix against official AMD documentation to confirm speed grade and package type. Ensure the ordering part number matches the required thermal and electrical specifications for the target application environment. Cross-reference the manufacturer's lifecycle status to confirm availability for long-term production needs.

Field Programmable Gate Array Selection Notes

Select this component when moderate logic density and low power consumption are required within a compact footprint. Evaluate the specific I/O voltage requirements and pin count constraints against the available 228 user I/Os. Consider the -4 speed grade if higher operating frequencies are necessary for the design timing closure.

Field Programmable Gate Array Part Context

This FPGA belongs to the Spartan-3E series, which serves as an evolution of the original Spartan-3 architecture. The series focuses on cost-effective solutions for mid-range complexity designs. It offers a balance between performance and power efficiency, making it suitable for volume production environments where budget constraints are significant.

Field Programmable Gate Array Replacement Considerations

Direct replacements within the same package and pinout may include other Spartan-3E variants with different speed grades or capacity levels. Verify compatibility with existing board layouts and software tools before substituting with components from different families.
