XC4036XL-1HQ304C

Field Programmable Gate Array Overview

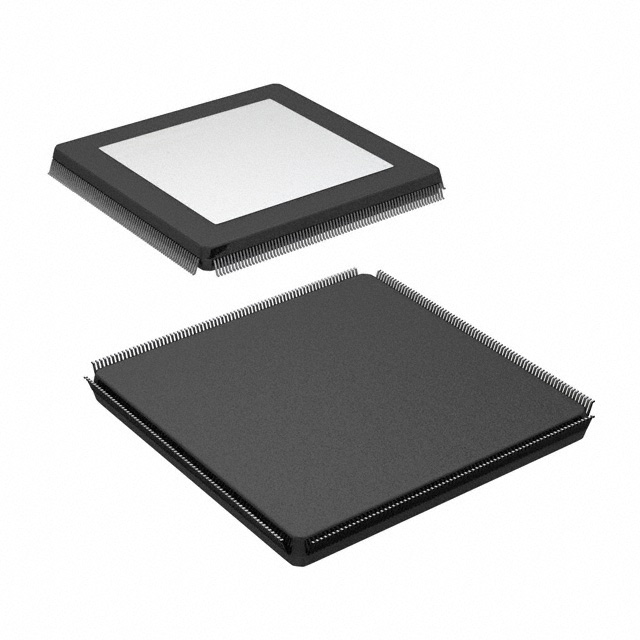

The XC4036XL-1HQ304C is a Field Programmable Gate Array (FPGA) from the AMD Xilinx XC4000XL series. It features 36,000 system gates and supports up to 288 I/O pins within a 304-pin HQFP package. The device includes 1,296 Logic Blocks (LABs), 3,078 logic elements, and 41,472 bits of total RAM. It operates on a 5V supply voltage range of 4.75V to 5.25V and functions within a commercial temperature range of 0°C to 85°C.

Field Programmable Gate Array Feature Summary

• High-density logic architecture utilizing XL technology for enhanced performance over standard XC4000 devices.
• Supports high-speed serial communication protocols through dedicated high-speed I/O capabilities.
• Integrated block RAM provides efficient data storage and buffering without external memory components.

Field Programmable Gate Array Applications

• Industrial control systems requiring robust logic processing.
• Telecommunications infrastructure equipment.
• Test and measurement instrumentation.

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized distributors or certified secondary market suppliers due to end-of-life status. Check for moisture sensitivity level compliance and ensure proper handling procedures are followed during assembly to prevent damage to the lead-free or tin-lead terminations.

Field Programmable Gate Array Selection Notes

Select this model when transitioning from legacy XC4000 designs to improve density and speed without changing pinouts significantly. Ensure design tools support the XC4000XL family and verify that the 304-pin HQFP package fits the target board layout constraints.

Field Programmable Gate Array Part Context

This part belongs to the XC4000XL family, an enhanced version of the original XC4000 series offering higher speeds and densities. It serves as a bridge between older CPLD/FPGA technologies and modern programmable logic solutions, often used in maintenance modes of existing industrial hardware.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible replacements are limited due to obsolescence. Consider migration to the Spartan-3E or Virtex-5 families for new designs, though pinouts and I/O standards will differ significantly requiring schematic and layout revisions.
