XC4VFX40-11FFG672C

Field Programmable Gate Array Overview

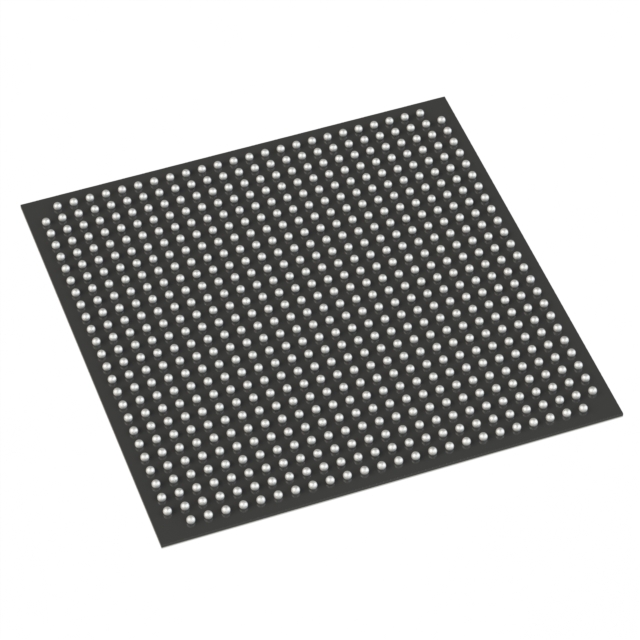

The XC4VFX40-11FFG672C is a Virtex-4 Field Programmable Gate Array manufactured by AMD. It features 41,904 logic elements and 18,624 adaptive logic modules within an FBGA-672 package. The device includes 2.53 Mbit of embedded memory and supports up to 352 I/Os. Operating at a maximum frequency of 500 MHz with transceivers capable of 6.5 Gb/s data rates, it functions on a 1.2 V supply voltage. The commercial grade variant ensures reliable operation across a temperature range of 0°C to +85°C.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture utilizing adaptive logic modules for efficient resource utilization
• Integrated high-speed serial transceivers supporting multi-gigabit data transmission rates
• Substantial embedded block RAM capacity for complex data buffering and processing tasks
• Robust I/O interface capabilities accommodating diverse external peripheral connections

Field Programmable Gate Array Applications

• Telecommunications infrastructure equipment requiring high-bandwidth signal processing
• Industrial automation control systems demanding deterministic logic execution
• Medical imaging hardware necessitating precise real-time data handling
• Test and measurement instrumentation requiring flexible reconfigurable logic

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C' confirms the commercial temperature rating of 0°C to +85°C against the official datasheet. Confirm the FF672 package designation matches the required footprint. Ensure RoHS compliance documentation aligns with current regulatory standards for the manufacturing batch.

Field Programmable Gate Array Selection Notes

Compare the 41,904 LE count against design complexity requirements to avoid over-specification. Evaluate the 12 transceiver availability against high-speed interface needs. Assess the 2.53 Mbit memory depth for buffer requirements. Consider the 500 MHz max frequency for timing closure feasibility in the target application.

Field Programmable Gate Array Part Context

This component belongs to the AMD Virtex-4 family, representing a mid-range density option within the series. It shares architectural similarities with higher-density models like the XC4VFX60 but offers a more compact form factor suitable for space-constrained designs while maintaining significant computational throughput.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible alternatives within the same series include the XC4VFX40-10FFG672C for slower speed grades or XC4VFX40-11FFG672I for industrial temperature ranges. Verify electrical compatibility before substitution.
