XC4VLX25-10SF363I

Field Programmable Gate Array Overview

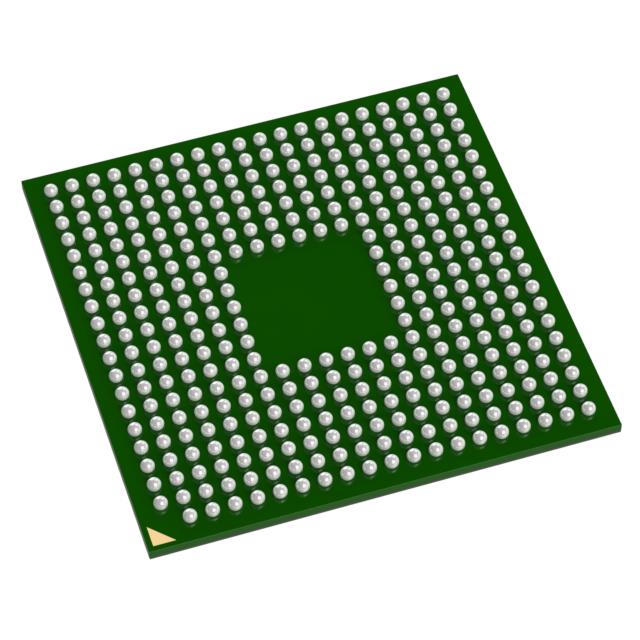

The XC4VLX25-10SF363I is a Virtex-4 LX Field Programmable Gate Array manufactured by AMD. It features 24,192 logic elements and 10,752 Adaptive Logic Modules (ALMs). The device includes 1.27 Mbit of embedded memory and supports 240 I/Os. Operating voltage ranges from 1.14 V to 1.26 V. It functions within a temperature range of -40°C to +85°C. The component is housed in a 363-pin FCBGA package.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture with significant ALM capacity for complex digital designs.
• Integrated high-speed serial transceivers supporting advanced communication protocols.
• Robust embedded memory resources for data buffering and processing tasks.
• Industrial-grade thermal performance suitable for demanding operational environments.

Field Programmable Gate Array Applications

• High-performance networking equipment requiring substantial logic density.
• Industrial automation controllers needing reliable programmable logic.
• Medical imaging systems utilizing high-speed signal processing capabilities.
• Test and measurement instruments requiring precise timing and control.

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' indicates industrial temperature rating (-40°C to +85°C) against official datasheets. Confirm the package type is FCBGA-363. Ensure compatibility with existing board layouts and power supply requirements before procurement. Check for RoHS compliance status in current manufacturer documentation.

Field Programmable Gate Array Selection Notes

Select this model when high logic density and industrial temperature stability are required. Compare with XC4VLX25-10SFG363C if commercial temperature range suffices. Evaluate pin count and I/O availability against system interface needs. Consider power consumption profiles relative to available cooling solutions.

Field Programmable Gate Array Part Context

This part belongs to the AMD Virtex-4 LX family, designed for mid-to-high-end FPGA applications. It shares architectural similarities with other LX series devices but offers specific resource configurations. The Virtex-4 platform introduced enhanced DSP slices and high-speed transceivers compared to previous generations.

Field Programmable Gate Array Replacement Considerations

XC4VLX25-10SFG363C is a verified alternative with identical electrical specifications but a commercial temperature range. Verify pinout compatibility and software configuration portability before substitution. No other direct replacements are confirmed in public documentation.
