XC6118N50DGR-G

Supervisors Overview

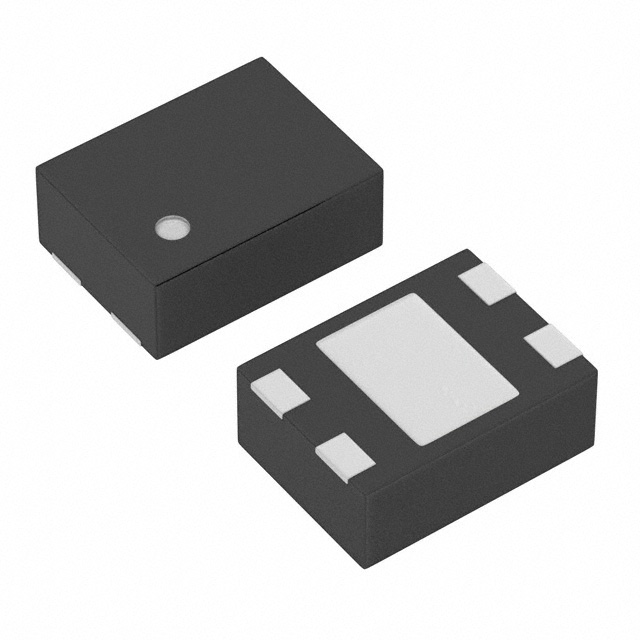

The XC6118N50DGR-G is a voltage detector manufactured by Torex Semiconductor Ltd, designed for monitoring single-channel power supply voltages. It features a 5.0V detection threshold and utilizes an open-drain or open-collector output configuration. The device is housed in a compact 4-USP (1.2x1.6) surface-mount package with an exposed pad. It operates within a temperature range of -40°C to 85°C and complies with RoHS3 standards.

Supervisors Feature Summary

• Features separated sense pin and delay capacitor pin for flexible circuit design
• Utilizes CMOS process technology for low power consumption and high accuracy
• Provides open-drain or open-collector output for versatile logic interfacing

Supervisors Applications

• Portable equipment requiring low power consumption
• Battery-powered devices needing precise voltage monitoring
• General-purpose electronic circuits requiring reset signals

Supervisors Procurement Notes

Verify the specific suffix 'N' indicates the separated sense/delay pin configuration distinct from standard variants. Confirm the 5.0V threshold matches system requirements. Ensure compatibility with open-drain output logic levels. Check RoHS3 compliance documentation for regulatory adherence. Validate the 4-USP package dimensions against PCB footprint specifications.

Supervisors Selection Notes

Select this component when a dedicated sense pin is required to isolate the detection input from other circuit noise. The open-drain output allows for wired-OR connections or level shifting. Consider the 5.0V threshold relative to the monitored rail's nominal voltage. Evaluate the need for external delay capacitance on the separate pin to manage reset timing.

Supervisors Part Context

This part belongs to the XC6118 series of voltage detectors from Torex Semiconductor. The series is characterized by high accuracy and low current consumption. The 'N' variant specifically denotes the inclusion of separate pins for sense input and delay capacitor connection, offering greater design flexibility compared to integrated versions.

Supervisors Replacement Considerations

XC6118N50AGR-G and XC6118N50BGR-G are parameter-equivalent alternatives within the same series. Verify that substitute parts maintain the open-drain output type and the separated pin architecture. Ensure the replacement maintains the 5.0V threshold and 4-USP package compatibility.
