XC6138NAN06R-G

Supervisors Overview

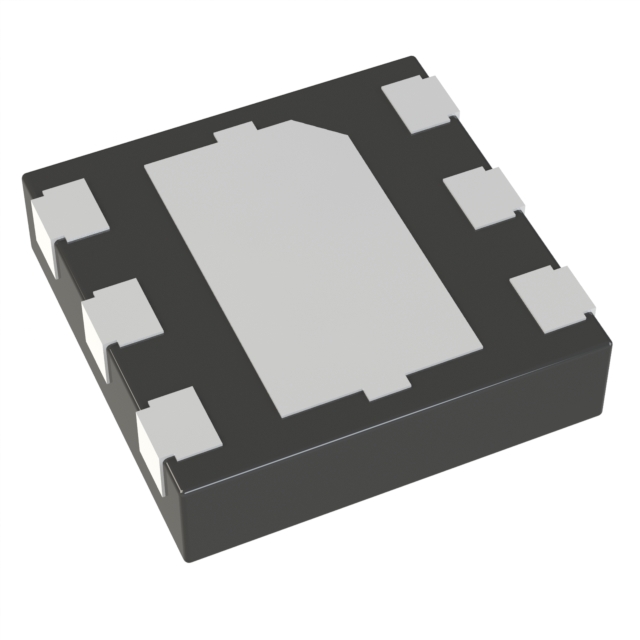

The XC6138NAN06R-G is a multi-function voltage detector manufactured by Torex Semiconductor, designed for monitoring single-input power supplies with a maximum input voltage of 76V. It operates within a supply voltage range of 2.2V to 6V and features an active low open-drain output. The device includes manual reset functionality, a backup battery switch, and power failure detection, while excluding watchdog timer and chip enable signals. It provides a fixed reset delay time of 10 ms and consumes a typical operating current of 600 nA. Packaged in a DFN-1515-6A surface-mount format, it supports operation across a temperature range of -40°C to +125°C with a power dissipation rating of 1 W.

Supervisors Feature Summary

• Supports high-voltage monitoring up to 76V via a separate sense pin
• Integrates manual reset capability and backup battery switching
• Provides power failure detection with active low open-drain output

Supervisors Applications

• Monitoring high-voltage power rails in industrial systems
• Battery backup switching in portable electronic devices
• Power failure detection in embedded supervisory circuits

Supervisors Procurement Notes

Verify the specific suffix 'N06' against official Torex documentation to confirm the exact threshold voltage and package variant, as ordering codes define functional parameters. Confirm RoHS compliance status through the manufacturer's datasheet or certified component listings before integration into production designs.

Supervisors Selection Notes

Select this component when high input voltage tolerance up to 76V is required without external dividers. Ensure the open-drain output configuration aligns with the downstream logic interface requirements. Verify that the 10 ms reset delay meets system timing constraints and that the manual reset feature satisfies operational safety needs.

Supervisors Part Context

This part belongs to the XC6138 series of multi-function voltage detectors from Torex Semiconductor. The series is characterized by separate sense pins allowing high-voltage monitoring and integrated backup switches. The XC6138NAN06R-G specifically utilizes the DFN-1515-6A package, distinguishing it from other variants in the family that may use different form factors or output types.

Supervisors FAQ

Does the XC6138NAN06R-G include a watchdog timer?

No, the XC6138NAN06R-G does not include a watchdog timer function.

What is the maximum input voltage supported by this detector?

The device supports a maximum input voltage of 76V through its separate sense pin.
