XC6230A001ER-G

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The XC6230A001ER-G is a Type A Adjustable Voltage Output Multifunction 2A High Speed LDO Regulator from the XC6230 series by Torex Semiconductor. It features an adjustable output voltage range of 1.2V to 5.0V with ±1.0% accuracy and a maximum output current of 2.0A. The device operates within an input voltage range of 1.7V to 6.0V, consuming a typical supply current of 45μA. Key electrical characteristics include a dropout voltage of 170mV at 1.0A (USP-6C package) and a power supply rejection ratio of 70dB. It incorporates reverse current protection, inrush current protection, and thermal shutdown.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Built-in reverse current prevention circuit to block backflow when VOUT exceeds VIN
• Inrush current protection limits startup charging current to suppress input line variations
• Adjustable current limit via external resistor on ILIM pin for customized overcurrent protection
• CL auto-discharge function rapidly drains output capacitor charge upon standby mode activation

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Industrial equipment
• Mobile modules
• Wireless modules

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

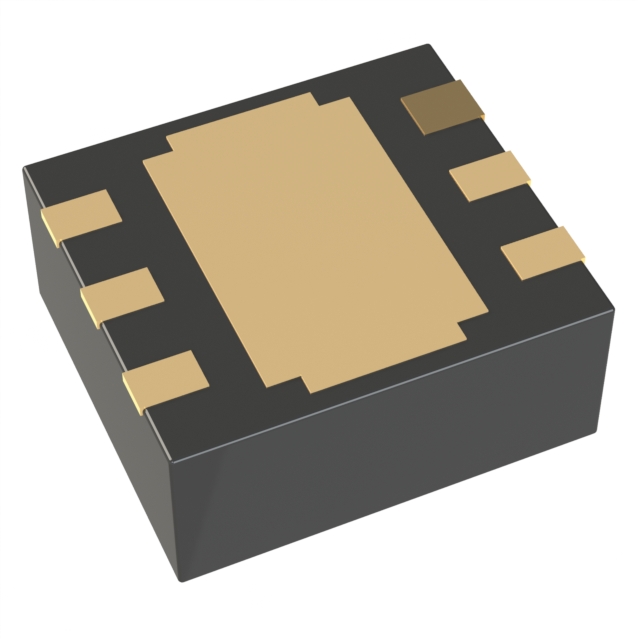

Verify the specific ordering suffix ER-G confirms the USP-6C package type and reel quantity. Confirm that the 'A' designation corresponds to the Type A variant which includes CL auto-discharge functionality. Ensure compliance requirements match EU RoHS and Pb-free standards as specified in the datasheet documentation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring high-speed regulation with adjustable output voltage up to 5.0V. The Type A configuration is suitable where rapid output discharge is necessary during shutdown. Consider the USP-6C package constraints regarding thermal dissipation and board space when designing the layout.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the XC6230 series of low-dropout regulators designed for space-saving applications. It utilizes a low ON-resistance Pch driver transistor to support large currents while maintaining precise voltage regulation. The series integrates multiple protection functions to enhance system reliability in compact electronic designs.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

XC6230H001ER-G: Same USP-6C package but Type B without CL auto-discharge. XC6230A001QR-G: Same Type A features but in SOP-8FD package.
