XC6233H20B9R-G

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The XC6233H20B9R-G is a positive fixed-output linear regulator from the Torex XC6233 series, providing a nominal output voltage of 2.0V with ±1% accuracy. It supports a maximum continuous output current of 200mA and operates within an input voltage range of 1.7V to 5.5V. The device features a low dropout voltage of 375mV at full load and maintains a typical supply current of 45μA. It incorporates built-in inrush current prevention, short-circuit protection, and a CE pin for active-high control with internal pull-down.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Integrated inrush current prevention circuit limits startup surge current to approximately 95mA.
• Built-in CL auto-discharge function rapidly drains output capacitor charge when disabled.
• Fold-back current limiter protects against overload by reducing current during short circuits.
• Compatible with low ESR ceramic capacitors for stable phase compensation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Mobile devices and terminals
• Wireless modules
• Camera modules

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

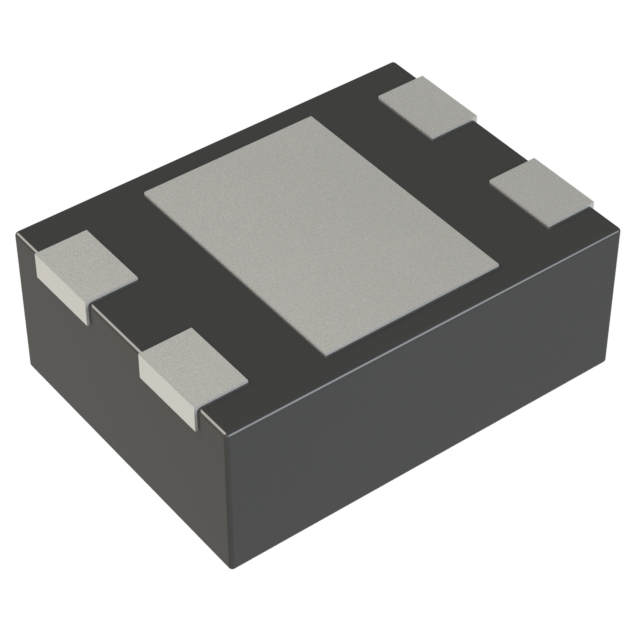

Verify the specific package type USPQ-4B04 matches the design footprint. Confirm the 2.0V output designation aligns with system requirements. Ensure compliance with EU RoHS standards as indicated by the -G suffix. Check datasheet thermal characteristics for PCB mounting constraints.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring precise 2.0V regulation with minimal quiescent current. The high ripple rejection ratio ensures clean power delivery under varying loads. Consider the dropout voltage relative to the minimum input voltage available in the target circuit.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the XC6233 series of 200mA high-speed LDO regulators. The series offers selectable output voltages in 0.05V increments between 1.2V and 3.6V. It is designed for portable electronics requiring efficient power management and fast transient response.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

XC6233H2019R-G

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

How does the CE pin behave when left open?

For Type H devices like this model, an internal pull-down resistor fixes the CE pin to a Low level, placing the device in stand-by mode if not actively driven High.

What is the purpose of the inrush current prevention circuit?

It limits the initial surge current flowing from VIN to VOUT during startup to approximately 95mA, protecting the input source and output capacitor.
