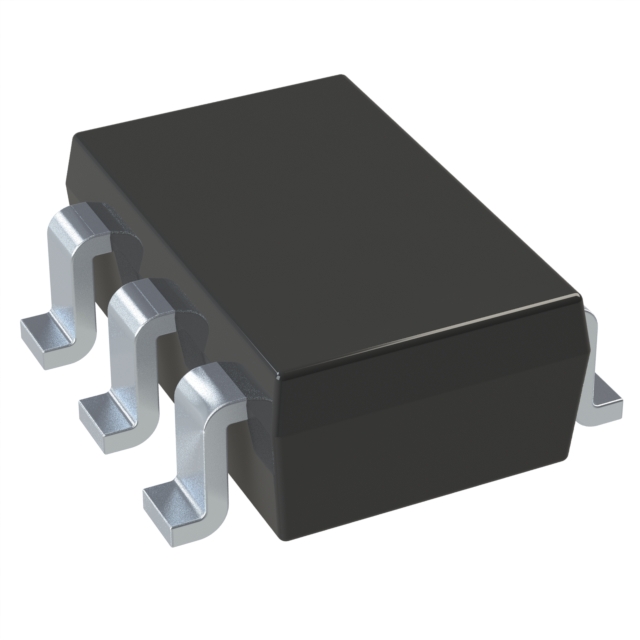

XC6603A061MR-G

$0.42

Description：IC REG LINEAR 0.6V 1A SOT-26W
Series：-
Mfr：Torex Semiconductor Ltd
Package：Tape & Reel (TR)

SKU:8b8cf8f20bc9 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Torex Semiconductor Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XC6603A061MR-G is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Torex Semiconductor Ltd. Its product description is IC REG LINEAR 0.6V 1A SOT-26W. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for XC6603A061MR-G

Description：IC REG LINEAR 0.6V 1A SOT-26W
Series：-
Mfr：Torex Semiconductor Ltd
Package：Tape & Reel (TR)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：3V
Voltage - Output (Min/Fixed)：0.6V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.206V @ 1A
Current - Output：1A
Current - Quiescent (Iq)：143 µA
PSRR：75dB (1kHz)
Control Features：Enable, Soft Start
Protection Features：Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：SOT-26W
Supplier Device Package：SOT-26W

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for XC6603A061MR-G

XC6603A061MR-G

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The XC6603A061MR-G is a low input voltage (0.5V) high-speed LDO regulator from the XC6603 series by Torex Semiconductor. It provides a fixed output voltage of 0.6V with an accuracy of ±0.015V. The device supports a maximum output current of 1A and operates within an input voltage range of 0.5V to 3.0V. Key electrical parameters include a typical ripple rejection of 75dB at 1kHz, a standby current of 0.01μA, and an operating ambient temperature range of -40℃ to +85℃. It features adjustable soft-start time via an external capacitor.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Adjustable soft-start time controlled by an external capacitor connected to the SS pin.
Built-in CE pull-down function maintains stand-by mode when the control pin is left open.
CL auto-discharge capability rapidly discharges output capacitance upon shutdown.
Integrated protection circuits including foldback current limit, thermal shutdown, and under-voltage lockout.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Smart phones and mobile phones
Digital still cameras and camcorders
Note PCs and tablet PCs
E-book readers and electronic dictionaries

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific package type SOT-26W against design requirements. Confirm the output voltage accuracy class matches the application tolerance needs. Ensure the bias voltage supply meets the minimum operational threshold for proper regulation. Check environmental compliance documentation for RoHS standards before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring stable power delivery from very low input voltages. The adjustable soft-start feature helps manage inrush currents during startup. Consider the thermal dissipation capabilities if operating near maximum current limits. Verify that the required output voltage increment aligns with the available laser-trimmed options in the series.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the XC6603 series of low dropout regulators designed for high efficiency at low voltages. The series utilizes N-channel driver transistors to achieve ultra-low on-resistance. It is categorized under PMIC solutions for portable electronics where battery life and space constraints are critical factors.
