XC75M4-32.000-F20NJDTK

Crystals Overview

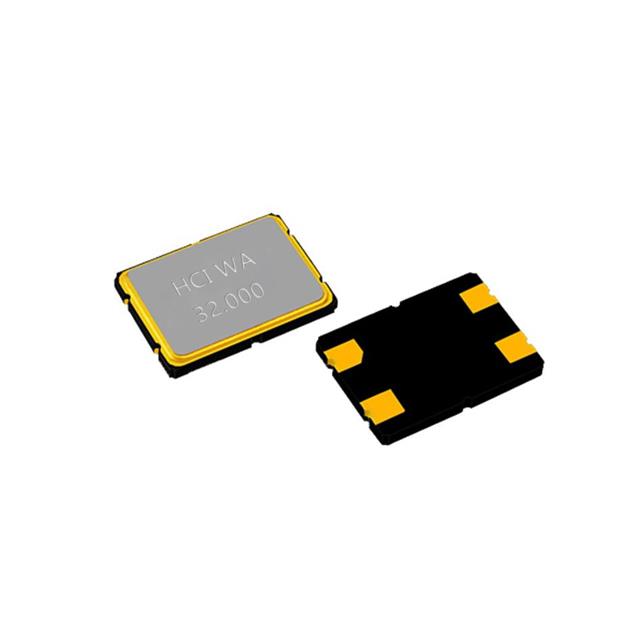

The XC75M4-32.000-F20NJDTK is a surface-mount quartz crystal resonator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a fundamental frequency of 32 MHz with a load capacitance specification of 20 pF. The component utilizes a 4-SMD, no lead package configuration and exhibits a frequency tolerance of ±10 ppm. It supports an operating temperature range from -40°C to +85°C and features a maximum equivalent series resistance (ESR) of 50 Ohms.

Crystals Feature Summary

• Provides stable reference frequency generation for digital circuits
• Designed for compact surface-mount applications
• Ensures reliable operation across extended industrial temperature ranges

Crystals Applications

• Wireless local area network devices
• Mobile communication equipment
• Bluetooth-enabled hardware systems

Crystals Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm exact electrical parameters and packaging specifications. Ensure compatibility with target circuit load capacitance requirements before integration. Cross-reference the part number with authorized distributor catalogs to validate authenticity and current availability status.

Crystals Selection Notes

Select this component when a 32 MHz reference signal is required in space-constrained designs. The 20 pF load capacitance must match the oscillator circuit design. Consider the ±10 ppm tolerance and 50 Ohm ESR limits relative to system stability requirements and environmental operating conditions.

Crystals Part Context

This model belongs to the XC75M4 series of quartz crystals from Suzhou Hangjing. The series is engineered for small form factor implementations in wireless LAN, mobile communications, and Bluetooth applications. It serves as a core frequency control element within timing circuits alongside integrated circuits.

Crystals Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the 32 MHz frequency, 20 pF load capacitance, 4-SMD package dimensions, and ±10 ppm tolerance specifications.
