XC7A15T-3CSG325E

Field Programmable Gate Array Overview

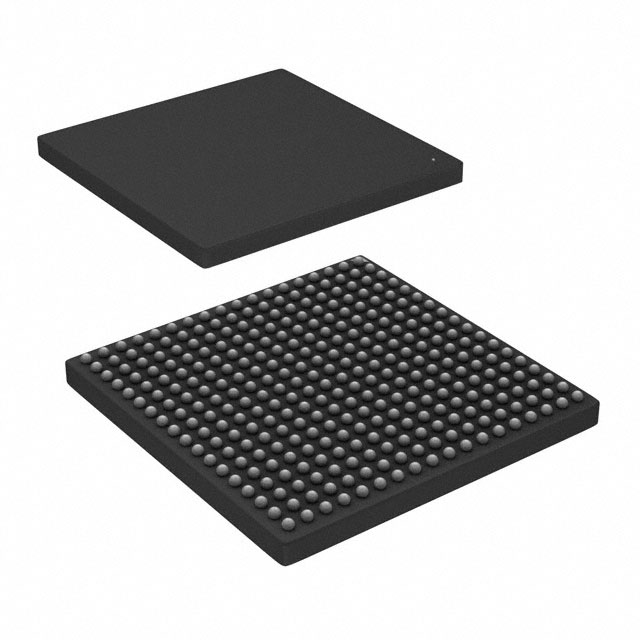

The XC7A15T-3CSG325E is an Artix-7 Field Programmable Gate Array manufactured by AMD. It features 16,640 logic elements and 2,600 adaptive logic modules within a 325-ball CSBGA package. The device includes 900 kbit of embedded block RAM and four high-speed serial transceivers capable of data rates up to 6.6 Gb/s. It operates with a core voltage range of 950 mV to 1.05 V and supports commercial temperature conditions from 0°C to +85°C.

Field Programmable Gate Array Feature Summary

• Artix-7 architecture optimized for low power consumption and cost-sensitive applications
• Integrated high-speed serial transceivers supporting multi-gigabit data rates
• Embedded memory resources suitable for buffering and data storage tasks
• Supports standard I/O voltage levels for broad peripheral compatibility

Field Programmable Gate Array Applications

• Software-defined radio implementations
• Industrial control systems requiring programmable logic
• Consumer electronics interface management
• Low-cost video processing pipelines

Field Programmable Gate Array Procurement Notes

Verify the specific ordering suffix against official AMD documentation to confirm speed grade and temperature rating. Ensure component authenticity through authorized distribution channels. Check RoHS compliance status prior to integration into regulated assemblies.

Field Programmable Gate Array Selection Notes

Compare resource requirements against the broader Artix-7 family to ensure adequate capacity. Verify that the 325-ball package provides sufficient I/O count for the target design. Confirm thermal management capabilities align with the commercial operating temperature range.

Field Programmable Gate Array Part Context

This component belongs to the Artix-7 series, targeting entry-level to mid-range FPGA applications. It balances performance with power efficiency, serving as a scalable solution for designs transitioning from complex discrete logic or lower-capacity devices.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other XC7A15T variants with compatible packages such as XC7A15T-3CSG325C. Cross-series migration requires re-evaluation of timing constraints and pinout compatibility.
