XC7SET08GW,125

Inverter Gates Overview

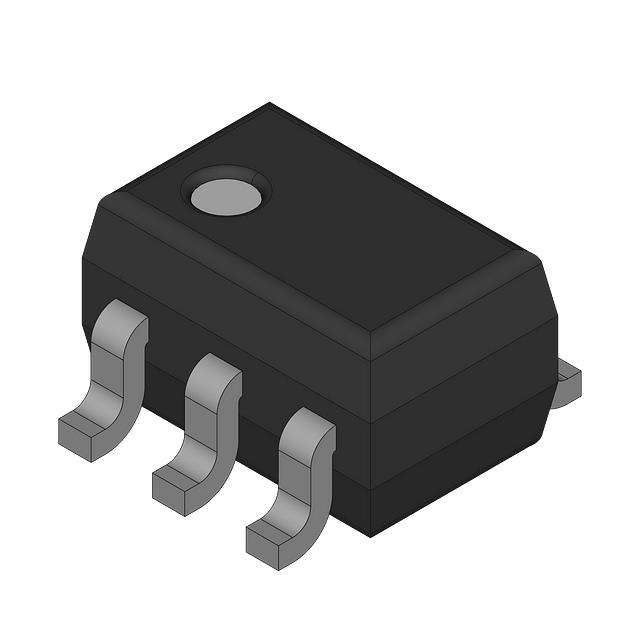

The XC7SET08GW,125 is a single-function logic gate manufactured by Nexperia. It implements an AND logic function with two inputs and one output. The device belongs to the SET logic series and utilizes CMOS technology. It is housed in a TSSOP-5 package (SOT353). The component operates within a supply voltage range of 4.5 V to 5.5 V. It supports a wide operating temperature range from -40 °C to +125 °C. The maximum propagation delay is specified at 4.8 ns. Output drive capabilities include a low-level current of 8 mA and a high-level current of -8 mA.

Inverter Gates Feature Summary

• Implements a single two-input AND logic function
• Utilizes CMOS technology for signal processing
• Operates within a standard 5V supply voltage range

Inverter Gates Applications

• Digital logic circuit design
• Signal gating applications
• Data path control systems

Inverter Gates Procurement Notes

Verify the specific ordering code XC7SET08GW,125 against official Nexperia documentation to ensure correct package and tape-and-reel specifications. Confirm compliance requirements such as RoHS and REACH status directly from the manufacturer's product database or datasheet before procurement. Ensure the selected variant matches the required thermal and electrical parameters for the intended application environment.

Inverter Gates Selection Notes

Select this component when a reliable two-input AND gate is required for 5V digital logic applications. The SET series offers robust performance with defined propagation delays suitable for general-purpose switching. Consider the TSSOP-5 package constraints regarding board space and thermal dissipation. Verify that the input voltage levels are compatible with the driving source within the specified 4.5V to 5.5V supply range.

Inverter Gates Part Context

This part is part of Nexperia's SET logic family, designed for general-purpose digital applications. The SET series provides standardized logic functions in compact packages. The XC7SET08GW variant specifically delivers AND functionality. It is distinct from other logic families like LVC or SH which may offer different voltage ranges or drive strengths. The component is intended for surface-mount assembly in consumer and industrial electronics.

Inverter Gates Replacement Considerations

Direct substitutes must match the AND function, 5V operation, and TSSOP-5 package. Check equivalent parts from other manufacturers ensuring identical pinout and electrical characteristics. Verify if alternative logic families provide sufficient drive current and speed for the specific circuit requirements.
