XC7SET125GF,132

Overview

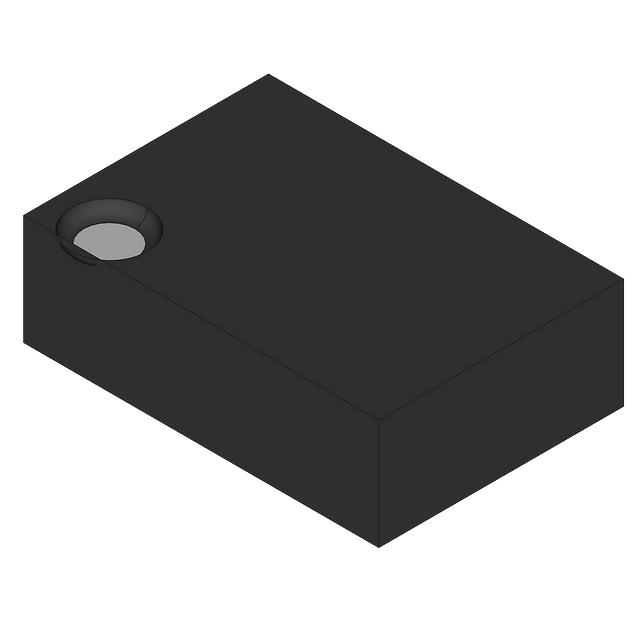

The XC7SET125GF,132 is a single buffer and line driver from the Nexperia 7SET series. It operates within a supply voltage range of 4.5V to 5.5V and supports an operating temperature range of -40°C to 125°C. The component is housed in a 6-XSON package with surface mount mounting type.

Feature Summary

• Single non-inverting buffer configuration
• Designed for high-speed signal transmission
• Compatible with standard logic families

Applications

• High-speed data bus buffering
• Signal line driving in communication interfaces
• Level shifting between 3.3V and 5V domains

Procurement Notes

Verify the specific suffix '132' corresponds to the required tape and reel packaging format. Confirm the 6-XSON footprint matches the target PCB design. Ensure compliance with RoHS and REACH regulations as stated in official documentation before finalizing procurement.

Selection Notes

Select this component when a single-channel non-inverting buffer is required for 5V logic applications. Consider the 6-XSON package size constraints and the 4.5V to 5.5V supply voltage requirements. Evaluate thermal performance within the specified -40°C to 125°C ambient temperature range.

Part Context

This part belongs to the Nexperia 7SET family of high-speed CMOS logic devices. These components are engineered for low power consumption and high noise immunity. The 7SET series provides various logic functions optimized for modern digital systems requiring reliable signal integrity.

Replacement Considerations

Check for direct pin-compatible alternatives within the same 7SET family. Verify that any substitute maintains the 6-XSON package and identical electrical characteristics. Consult official substitution guides for confirmed equivalent part numbers.
