XC7VX330T-2FFG1157C

Field Programmable Gate Array Overview

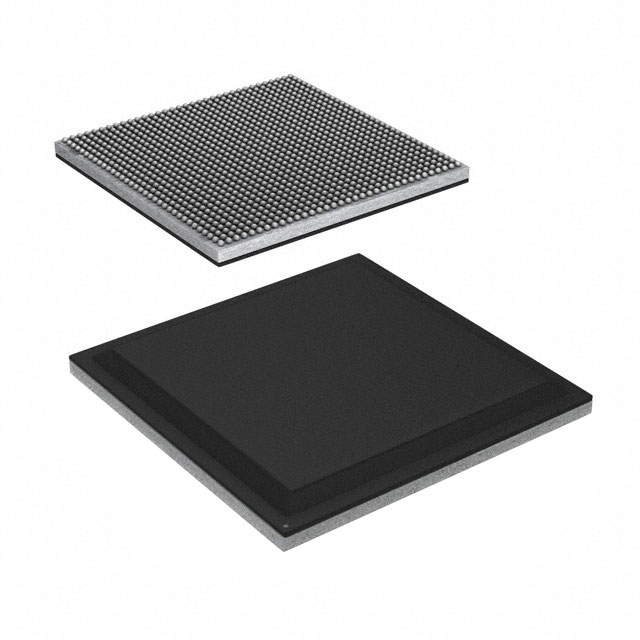

The XC7VX330T-2FFG1157C is a Virtex-7 FPGA manufactured by AMD, utilizing 28nm HPL technology. It features 326,400 logic elements and 51,000 Adaptive Logic Modules (ALMs). The device includes 26.37 Mbit of embedded memory, comprising 4,388 kbit distributed RAM and 27,000 kbit embedded block RAM. It supports up to 600 I/O pins and operates within a voltage range of 1.2 V to 3.3 V. The component integrates 20 GTH transceivers capable of data rates up to 28.05 Gb/s. It is housed in an FCBGA-1157 package with a maximum operating frequency of 640 MHz and functions within a temperature range of 0°C to +85°C.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture based on configurable 6-input Look-Up Tables (LUTs) for advanced system integration.
• Integrated high-speed serial connectivity supporting multi-gigabit transceiver interfaces optimized for chip-to-chip communication.
• On-chip memory resources including dual-port block RAM with built-in FIFO logic for efficient data buffering.

Field Programmable Gate Array Applications

• Network infrastructure equipment requiring high-bandwidth serial processing
• Portable radar systems demanding low power consumption and high performance
• ASIC prototyping for complex digital designs

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix '2' against project timing requirements, as it differs from the '1' variant. Confirm the commercial temperature range (0°C to +85°C) aligns with environmental constraints. Ensure the FCBGA-1157 footprint matches the PCB design. Check RoHS compliance status via official documentation before finalizing procurement orders.

Field Programmable Gate Array Selection Notes

Select this model when a balance of moderate logic density and high-speed serial I/O is required. Compare against the XC7VX415T if higher logic capacity is needed, or the XC7VX330T-1FFG1157C if a lower speed grade suffices. Consider the 28nm process node characteristics for power management strategies. Evaluate the 20 GTH transceiver count against interface bandwidth needs.

Field Programmable Gate Array Part Context

This component belongs to the AMD Virtex-7 family, designed for high-performance applications using 28nm technology. The series offers scalable logic resources and integrated DSP slices. The XC7VX330T represents a mid-range density option within the Virtex-7 portfolio, suitable for cost-sensitive yet performance-critical designs compared to larger devices like the XC7VX980T.

Field Programmable Gate Array Replacement Considerations

The XC7VX330T-1FFG1157C is a pin-compatible alternative with a different speed grade. Other Virtex-7 devices in the same package may require retiming or resource verification. No direct cross-family replacements exist without architectural changes.
