XC7VX485T-1FFG1158C

Field Programmable Gate Array Overview

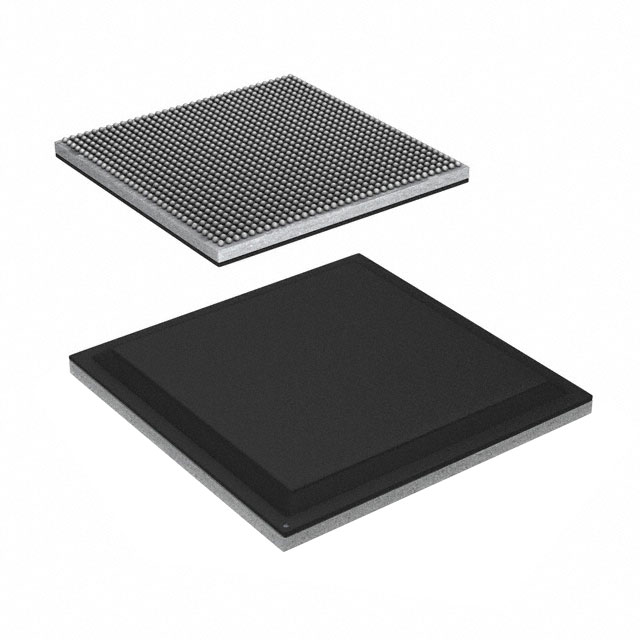

The AMD XC7VX485T-1FFG1158C is a Virtex-7 FPGA utilizing 28nm HPL technology. It provides 485,760 logic elements and 37,080 Kb of embedded block RAM. The device features 48 GTH transceivers supporting data rates up to 28.05 Gb/s. It operates within a voltage range of 1.2 V to 3.3 V and supports a maximum frequency of 640 MHz. The component is housed in an FCBGA-1158 package with 600 I/O pins and functions within a commercial temperature range of 0°C to +85°C.

Field Programmable Gate Array Feature Summary

• High-performance logic fabric based on 28nm HPL process technology for optimized system integration.
• Integrated high-speed serial connectivity via GTH transceivers supporting multi-gigabit data rates.
• Advanced clock management blocks combining PLLs and MMCMs for precise timing control.
• Built-in security features including AES encryption and SEU detection for reliable operation.

Field Programmable Gate Array Applications

• High-speed networking equipment requiring multi-gigabit serial interfaces
• Portable radar systems demanding high signal processing bandwidth
• ASIC prototyping for complex digital designs

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C' indicates commercial temperature rating during acquisition. Confirm the package type matches the design footprint requirements. Ensure compliance with export regulations if applicable. Check for RoHS status details before finalizing orders. Validate that the lead time aligns with project schedules due to potential supply constraints.

Field Programmable Gate Array Selection Notes

Select this model when high logic density and extensive serial connectivity are required. Compare resource usage against the XC7VX330T or XC7VX690T variants for optimal cost-performance balance. Ensure the design fits within the 485,760 LE limit. Verify power supply requirements match the 1.2V core voltage specification.

Field Programmable Gate Array Part Context

This component belongs to the AMD Virtex-7 family, designed for high-end applications. It shares architectural similarities with other Virtex-7 devices like the XC7VX330T and XC7VX690T. The series emphasizes low power consumption and high reliability using 28nm technology. It serves as a scalable solution for demanding digital signal processing tasks.

Field Programmable Gate Array Replacement Considerations

XC7VX485T-2FFG1158C offers an industrial temperature rating variant. XC7VX330T-2FFG1158C provides lower logic resources. XC7VX690T-2FFG1158C delivers higher capacity. Verify pin compatibility and thermal requirements when substituting.
