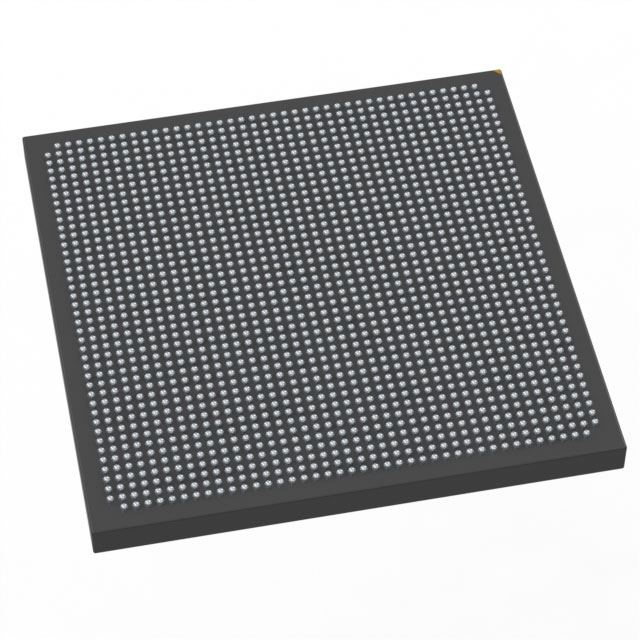

XC7VX690T-2FFG1761I

Field Programmable Gate Array Overview

The XC7VX690T-2FFG1761I is a Virtex-7 FPGA manufactured by AMD/Xilinx, built on 28nm HPL technology. It features 693,120 logic cells and 108,300 adaptive logic modules (ALMs). The device includes 51.68 Mbit of embedded memory, comprising 52,920 Kb of block RAM and 10,888 Kb of distributed RAM. It supports up to 850 I/Os and operates within a voltage range of 970 mV to 1.03 V for core logic. The component utilizes an FCBGA-1761 package and supports data rates up to 28.05 Gb/s via its transceivers.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture optimized for complex system integration
• Integrated high-speed serial transceivers supporting multi-gigabit data transmission protocols
• Dedicated digital signal processing slices for efficient mathematical computation
• Robust clock management and phase-locked loop resources for precise timing control

Field Programmable Gate Array Applications

• High-performance computing systems requiring massive parallel processing capabilities
• Advanced telecommunications infrastructure including baseband processing and network acceleration
• Test and measurement equipment demanding high-speed data acquisition and analysis
• Video processing and imaging systems utilizing real-time signal manipulation

Field Programmable Gate Array Procurement Notes

Verify export compliance requirements as this product may require additional documentation for international shipping from the United States. Confirm RoHS compliance status through official manufacturer channels before procurement. Ensure that the specific suffix 'I' matches the required industrial temperature grade specifications for your application environment.

Field Programmable Gate Array Selection Notes

Select this model when high logic density and extensive memory resources are critical for system performance. Consider the FCBGA-1761 package constraints during PCB layout planning. Evaluate thermal management solutions given the high transistor count and power consumption characteristics inherent to the 28nm HPL process node.

Field Programmable Gate Array Part Context

This component belongs to the Virtex-7 family, which represents AMD/Xilinx's high-end FPGA portfolio. It shares architectural similarities with other VX690T variants but differs in package type and speed grade. The part number indicates the specific logic capacity, package configuration, and operating temperature range defined by the manufacturer.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include other XC7VX690T variants such as XC7VX690T-2FFG1761C or XC7VX690T-2FFG1157I, depending on package and temperature requirements. Verify pin compatibility and electrical specifications before substitution.
