XC7WH126DC,125

Overview

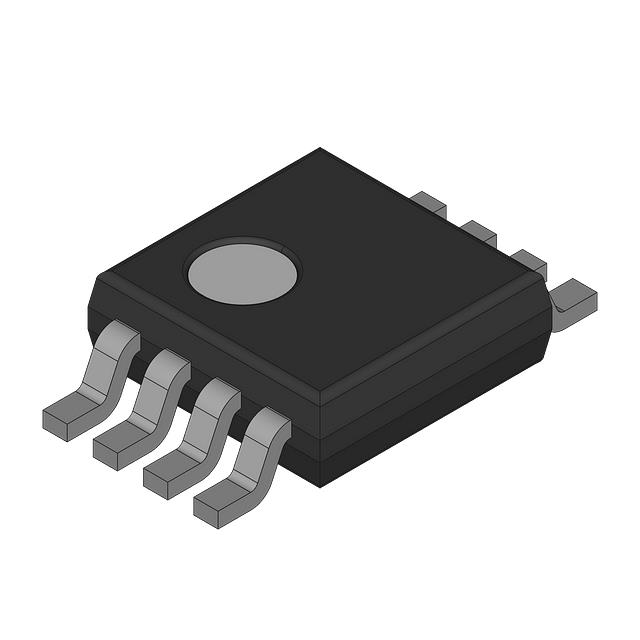

The XC7WH126DC,125 is a dual non-inverting buffer manufactured by Nexperia USA Inc., housed in an 8-VFSOP package. It operates within a supply voltage range of 2 V to 5.5 V and supports surface mount installation. The device features two channels with three-state outputs, providing high-level and low-level output currents of 8 mA each. Static current is specified at 1 uA, while operating power consumption reaches 40 uA. It functions reliably across a temperature range of -40°C to +125°C.

Feature Summary

• Dual non-inverting buffer configuration with three-state outputs for flexible bus interfacing
• High-speed data transfer capability with low propagation delay and tight output skew
• Compact 8-pin VFSOP footprint designed to minimize board space requirements

Applications

• High-speed data transfer systems requiring signal buffering
• Portable equipment utilizing low-voltage CMOS logic
• Consumer electronics demanding compact component footprints

Procurement Notes

Verify the specific suffix DC against the required package type, as it denotes the 8-VFSOP variant. Confirm RoHS compliance status through official documentation before integration. Ensure the ordering quantity aligns with distributor reel or cut-tape specifications. Cross-reference the manufacturer part number with internal bill-of-materials to prevent substitution errors during procurement.

Selection Notes

Select this component when design constraints require a small form factor alongside robust drive capabilities. The 8-VFSOP package offers significant space savings compared to traditional leaded packages. Consider the 2 V to 5.5 V operating range for compatibility with various logic families. Evaluate the 8 mA output current against load requirements to ensure signal integrity without excessive power dissipation.

Part Context

This device belongs to Nexperia's portfolio of advanced CMOS logic buffers. It is engineered for applications prioritizing speed and physical size reduction. The VFSOP packaging represents a modern surface-mount solution suitable for automated assembly processes. It complements other logic ICs in designs requiring reliable signal transmission in constrained spaces.

Replacement Considerations

Direct substitutes include the XC7WH126DP,125, which shares identical electrical characteristics but utilizes a TSSOP-8 package. Verify pinout compatibility and thermal performance differences between the VFSOP and TSSOP variants before swapping components in existing layouts.
